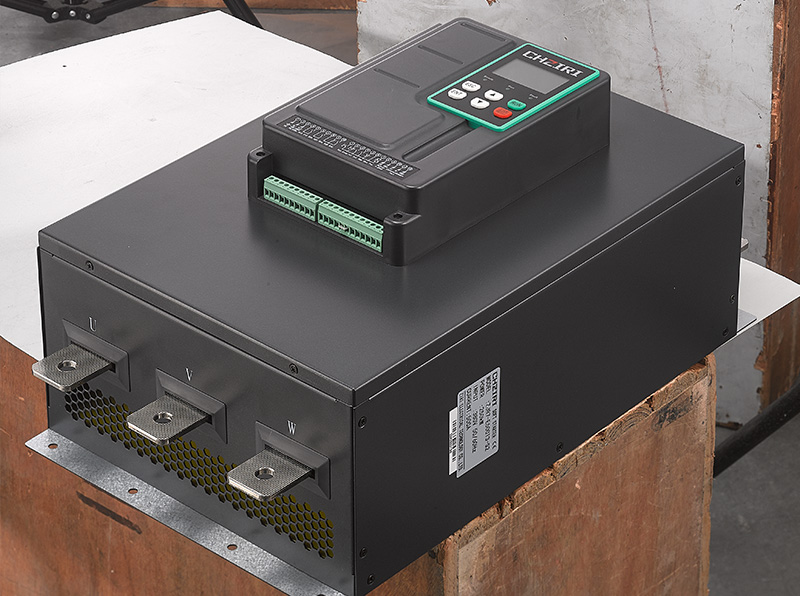

CHZIRI ZJR7 Series Soft Starter Use for Water Pump System

In water pump and fan systems, the application of soft starter technology primarily aims to overcome issues associated with traditional direct start methods, such as high inrush currents, mechanical stress, and impacts on the power grid. By employing a soft starter, motors can achieve smooth acceleration, reducing shocks to mechanical equipment and the power grid while extending the service life of devices and improving overall system efficiency. Below are specific applications of soft starters in water pump and fan systems:

1. Smooth Start

• Reduction of Water Hammer Effect: For pump systems, rapid starts can lead to high-pressure waves within pipes, known as the "water hammer effect," potentially damaging pipes or connections. Using a soft starter allows the pump to gradually increase its speed, establishing a steady flow smoothly and effectively preventing water hammer.

• Prevention of Sudden Air Pressure Changes: In fan systems, abrupt startups may cause significant variations in airflow, imposing additional pressure fluctuations on the system. A soft starter enables fans to reach their operating speed gradually, minimizing pressure shocks to the system.

2. Parameter Adjustment

• Adjustment of Start Time and Acceleration Rate: According to actual needs, parameters of the soft starter can be set to control the time required for the motor to go from a stationary state to rated speed, as well as the rate of acceleration during this process. This better matches the requirements of different specifications of pumps or fans.

• Setting Initial Voltage: Appropriately lowering the initial voltage during motor startup helps reduce starting current, thereby lessening the impact on the power grid.

3. Energy Efficiency Optimization

• Adjust Running Parameters Based on Demand: Some advanced soft starters also feature automatic adjustment of running parameters based on load changes, enabling motors to operate under optimal conditions, thus enhancing energy utilization efficiency.

• Energy Consumption Reduction: Since soft starters can effectively limit starting current, they consume less energy throughout the start-up process, contributing to energy conservation and emission reduction.

4. Enhanced System Reliability

• Protection of Motors and Other Components: By reducing mechanical and electrical stresses during startup, soft starters not only protect the motors themselves but also indirectly safeguard other connected mechanical parts like couplings and bearings, reducing maintenance costs and failure rates.

• Improvement of System Stability: A stable startup process aids in maintaining the balance of the entire water supply or air supply system, avoiding disturbances or interruptions caused by startup problems.

In summary, introducing soft starter technology into water pump and fan systems not only improves startup performance but also enhances system reliability and energy efficiency. With technological advancements, the application of soft starters will become even more widespread, integrating more intelligent functions to meet diverse operational condition demands.
