ZVF330 Series Mini Type AC Drive are developed for general applications of small power and OEM market. It applies V/f control technology, making the functions of PID, multiple-speed step, DC braking, Modbus communication, as well as less installation space .ZVF330 Series AC drive is for small automation equipment of economical type, especially suitable for electronic equipment, food packaging, wood, glass and other small power transmission



1. Output frequency :0-600Hz.

2. Multiple password protection mode

3. Remote control operation keypad, convenient for remote control.

4. V/F curve &multi-inflection point setting, flexible configuration .

5. Keyboard parameter copy function. easy to set the parameters for multi-inverters .

6. Wide industry application . to expand special function according to different industries.

7. Multiple hardware and software protection and optimized hardware for anti-interference technology.

8. Multi-step speed and wobble frequency running (external terminal 15 steps speed control).

9. Unique adaptive control technology . Auto current limiting and voltage limiting and under-voltage restrain .

10. Optimized external installation and internal structure and independent air flue design , fully enclosed electrical space design .

11. Output automatic voltage regulation function .(AVR),automatically adjust the output pulse width . to eliminate the  influence  of the grid change on load .

12. Built-in PID regulation function to facilitate the  realization of closed loop control of the temperature ,pressure and flow . and reduce the cost of the control system .

13. Standard MODBUS communication protocol . easy to achieve the communication between PLC,IPC and other industrial equipment.

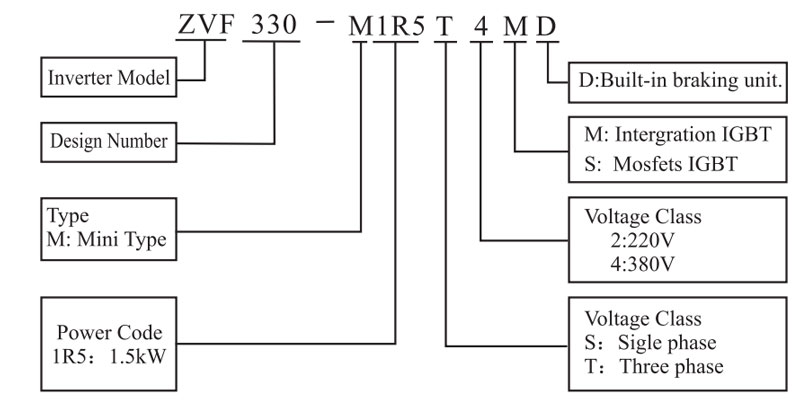

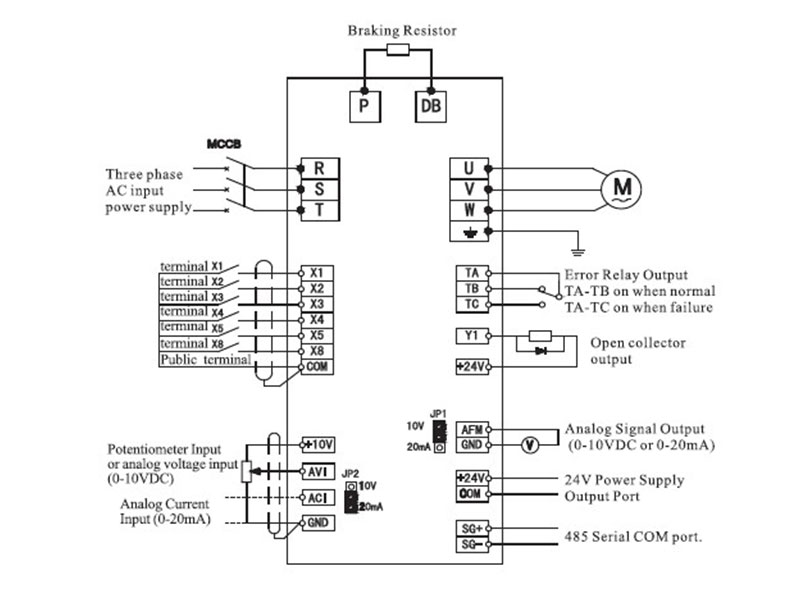

Demonstration of the Model







Application Range

Metal processing ,digital machine tool, wire drawing bench and other mechanical equipment . paper making equipment ,chemistry industry ,medicine industry and textile industry ,all kinds of fans and pumping load .etc

Input Voltage (V)

Output Voltage(V)

Power Range (kW)

Single phase 220V± 20%

Three phase 0~Input Voltage

0.4kW~2.2kW

Three phase 380V ± 20%

Three phase 0~Input Voltage

0.75kW~7.5kW



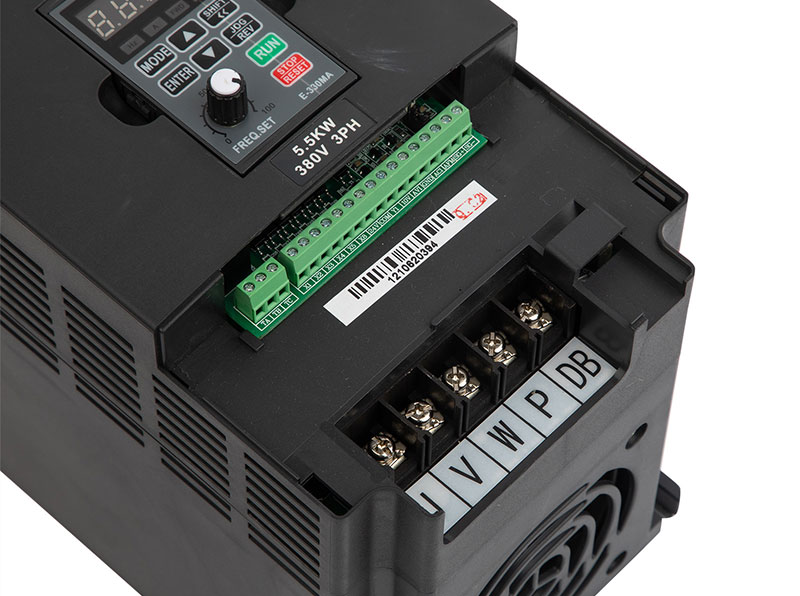

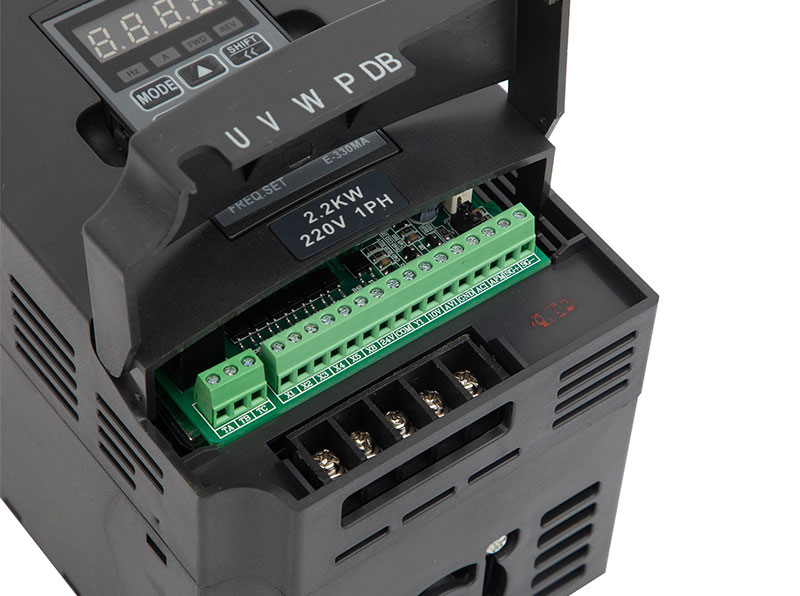

ZVF330 Series Mini AC Drive

Inverter Outline Dimension &Outline Dimension

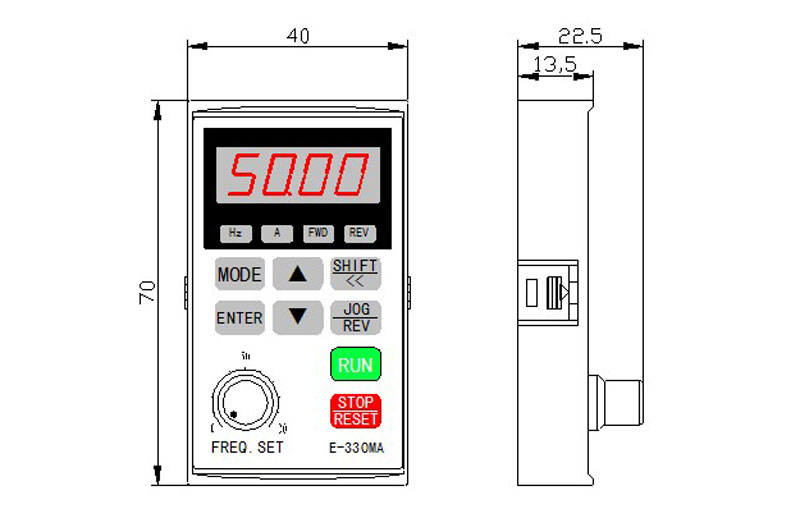

Keypad for ZVF330 Series AC Drive

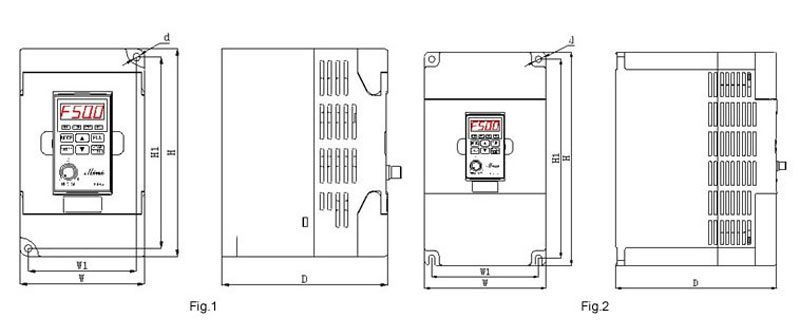

Inverter Outline& Mounting Dimension (Unit:mm)



Inverter Model

Voltage

(V)

Power

(KW)

Current

( A)

Dimension (mm)

Figure

H

H1

W

W1

D

d

ZVF330-M0R4S2MD

220V

0.4

2.4

142

131

85

74

125

Ф5

Fig.1

ZVF330-M0R7S2MD

0.75

4.5

142

131

85

74

125

Ф5

ZVF330-M1R5S2SD

1.5

7.0

151

140

100

89.5

129

Ф5

ZVF330-M2R2S2SD

2.2

10

151

140

100

89.5

129

Ф5

ZVF330-M0R7T4SD

380V

0.75

2.5

151

140

100

89.5

129

Ф5

ZVF330-M1R5T4SD

1.5

3.7

151

140

100

89.5

129

Ф5

ZVF330-M2R2T4SD

2.2

5.0

151

140

100

89.5

129

Ф5

ZVF330-M3R7T4MD

3.7

9.0

220

205

125

110

176

Ф6.5

Fig.2

ZVF330-M5R5T4MD

5.5

13

220

205

125

110

176

Ф6.5

ZVF330-M7R5T4MD

7.5

17

220

205

125

110

176

Ф6.5



Three phase 220V



Inverter Model

Voltage

(V)

Power

(KW)

Current

( A)

Dimension (mm)

Figure

H

H1

W

W1

D

d

ZVF330-M0R7T2MD

220V

0.75

4.5

151

140

100

89.5

129

Ф5

Fig.1

ZVF330-M1R5T2SD

1.5

7.5

151

140

100

89.5

129

Ф5

ZVF330-M2R2T2SD

2.2

10

151

140

100

89.5

129

Ф5

ZVF330-M3R7T2MD

3.7

16

220

205

125

110

176

Ф6.5

Fig.2

ZVF330-M5R5T2MD

5.5

25

220

205

125

110

176

Ф6.5
