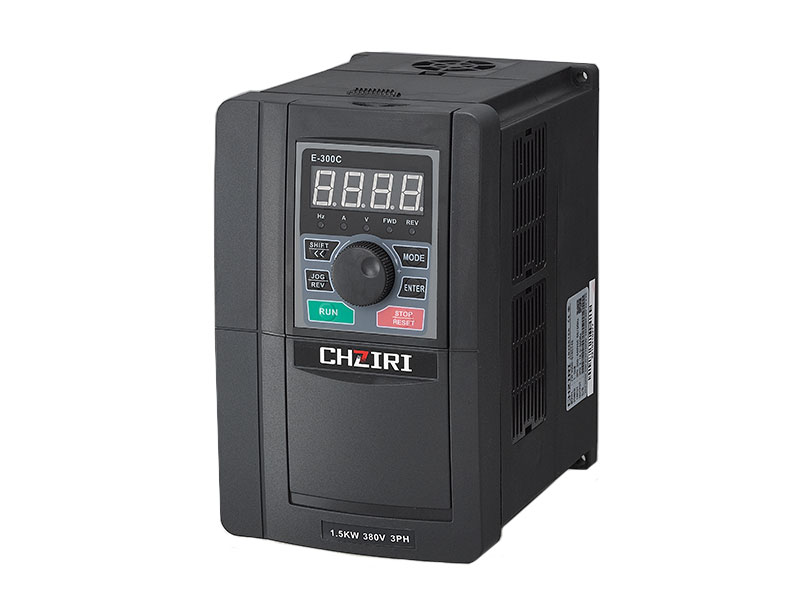

ZVF300H series Frequency Inverter are high performance open loop vector inverters for controlling asynchronous AC induction motors .
High Performance Vector Control Frequency Inverter
ZVF300H series Frequency Inverter has the good effect energy conservation, fine speed adjustment performance, stable operation ,electrical machinery soft starter ,protect function and other advantages.
ZVF300H series high Performance vector control frequency inverter is ZIRI Electrical developed main products type frequency inerter . General type and fan/pump type are in one model . support Modbus communication protocol. can be widely used to control and drive the speed of induction motors and asynchronous motor . superior performance, abundant functions, easy operation, high accountability and a complete range of specifications. Can fully meet the individual needs of customers in the industry.
1.Output frequency :0-600Hz.
2.Multiple password protection mode
3.Remote control operation keypad, convenient for remote control.
4.V/F curve &multi-inflection point setting, flexible configuration .
5.Keyboard parameter copy function . easy to set the parameters for multi-inverters .
6.Wide industry application . to expand special function according to different industries.
7.Multiple hardware and software protection and optimized hardware for anti-interference technology.
8. Multi-step speed and wobble frequency running (external terminal 15 steps speed control).
9.Unique adaptive control technology . Auto current limiting and voltage limiting and under-voltage restrain .
10.Optimized external installation and internal structure and independent air flue design , fully enclosed electrical space design .
11.Output automatic voltage regulation function .(AVR),automatically adjust the output pulse width . to eliminate the influence of the grid change on load .
12.Built-in PID regulation function to facilitate the realization of closed loop control of the temperature ,pressure and flow . and reduce the cost of the control system .
13.Standard MODBUS communication protocol . easy to achieve the communication between PLC,IPC and other industrial equipments.

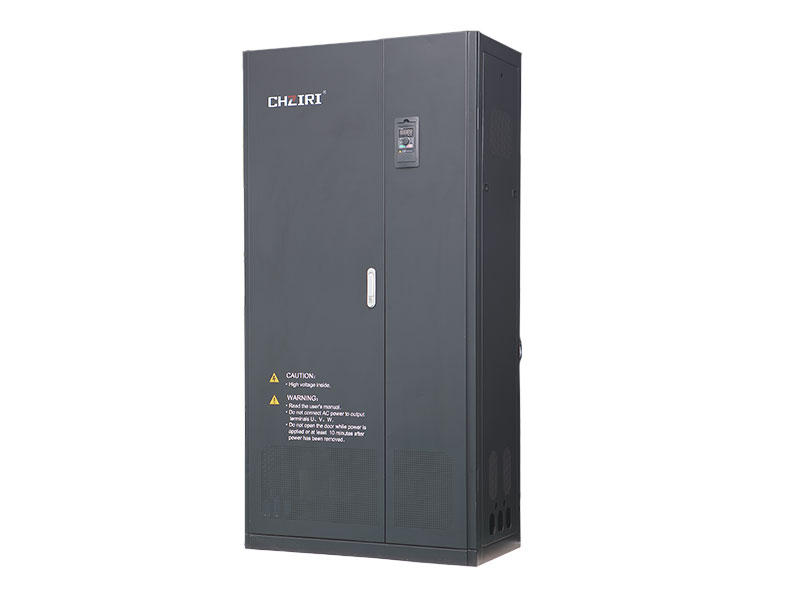

Demonstration of the Model
Application Range
1.Handing machinery, conveyor.
2.Wire drawing machines, industrial washing machines .sports machines.
3.Fluid machinery: fan, water pump ,blower. music fountain .
4.Public mechanical equipment: high precision CNC machine tools,CNC machine.
5.Metal processing, wire drawing machine and other mechanical equipment .
6.Paper-making equipment, chemical industry ,pharmaceutical industry, textile industry ,ect.
ZVF300H series Frequency Inverter Model Selection Guide
Input Voltage (V) |
Output Voltage(V) |
Power Range (kW) |
1-phase 200~240V |
3-phase 0~Input Voltage |
0.4~3.7 kW |
3-phase 360~440V |
3-phase 0~Input Voltage |
0.75kW~630 kW |
G type Overload capacity :150% 1 minute; 180% 1 second;200% transient protection. P type Overload capacity :120% 1 minute; 150% 1 second;180% transient protection. |

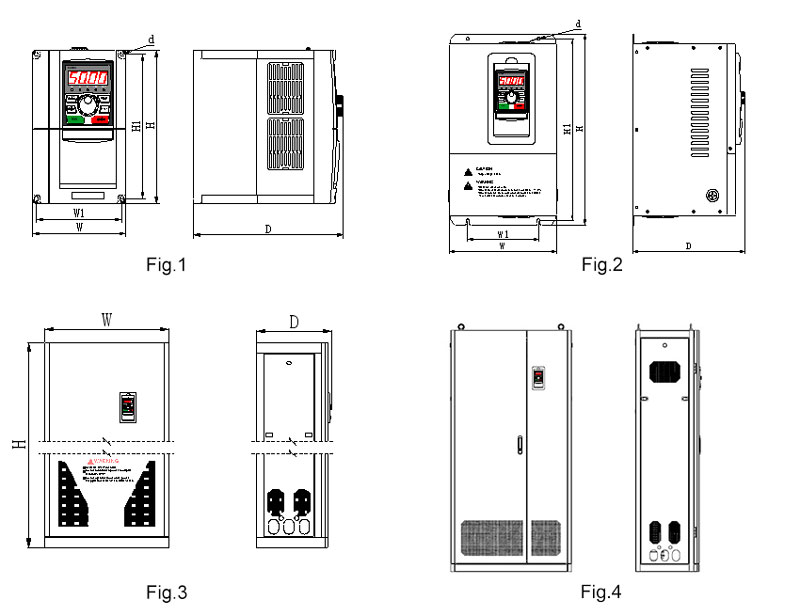

Inverter Outline & Mounting Dimension (Unit:mm)
Inverter Model |
Power |
Current |
Dimension (mm) |
Figure |
|||||
H |
H1 |
W |
W1 |
D |
d |
||||
ZVF300H-G0R4S2SD |
0.4 |
2.4 |
185 |
175 |
118 |
108 |
170 |
5 |
Fig.1 |
ZVF300H-G0R7S2SD |
0.75 |
4.5 |
185 |
175 |
118 |
108 |
170 |
5 |
|
ZVF300H-G1R5S2SD |
1.5 |
7.0 |
185 |
175 |
118 |
108 |
190 |
5 |
|
ZVF300H-G2R2S2SD |
2.2 |
10 |
185 |
175 |
118 |
108 |
190 |
5 |
|
ZVF300H-G3R7S2SD |
3.7 |
16 |
215 |
205 |
145 |
135 |
193 |
5 |
|
ZVF300H-G0R7T4SD |
0.75 |
2.5 |
185 |
175 |
118 |
108 |
170 |
5 |
|
ZVF300H-G1R5T4SD |
1.5 |
3.7 |
185 |
175 |
118 |
108 |
170 |
5 |
|
ZVF300H-G2R2T4SD |
2.2 |
5.0 |
185 |
175 |
118 |
108 |
170 |
5 |
|
ZVF300H-G3R7/P5R5T4SD |
3.7/5.5 |
9.0/13 |
185 |
175 |
118 |
108 |
190 |
5 |
|
ZVF300H-G5R5/P7R5T4MD |
5.5/7.5 |
13/17 |
215 |
205 |
145 |
135 |
193 |
5 |
|
ZVF300H-G7R5/P011T4MD |
7.5/11 |
17/25 |
215 |
205 |
145 |
135 |
193 |
5 |
|
ZVF300H-G011/P015T4MD |
11/15 |
25/32 |
265 |
253 |
185 |
174 |
215 |
6 |
|
ZVF300H-G015/P018T4MD |
15/18.5 |
32/37 |
265 |
253 |
185 |
174 |
215 |
6 |
|
ZVF300H-G018/P022T4MD |
18.5/22 |
37/45 |
385 |
370 |
220 |
150 |
210 |
7 |
Fig.2 |
ZVF300H-G022/P030T4MD |
22/30 |
45/60 |
385 |
370 |
220 |
150 |
210 |
7 |
|
ZVF300H-G030/P037T4M |
30/37 |
60/75 |
450 |
435 |
260 |
180 |
225 |
7 |
|
ZVF300H-G037/P045T4M |
37/45 |
75/90 |
450 |
435 |
260 |
180 |
225 |
7 |
|
ZVF300H-G045/P055T4M |
45/55 |
90/110 |
510 |
490 |
320 |
220 |
275 |
9 |
|
ZVF300H-G055/P075T4M |
55/75 |
110/150 |
510 |
490 |
320 |
220 |
275 |
9 |
|
ZVF300H-G075/P090T4M |
75/90 |
150/176 |
570 |
550 |
380 |
260 |
320 |
9 |
|
ZVF300H-G090/P110T4M |
90/110 |
176/210 |
570 |
550 |
380 |
260 |
320 |
9 |
|
ZVF300H-G110/P132T4M |
110/132 |
210/253 |
570 |
550 |
380 |
260 |
320 |
9 |
|
ZVF300H-G132/P160T4M |
132/160 |
253/300 |
570 |
550 |
380 |
260 |
320 |
9 |
|
ZVF300H-G160/P185T4M |
160/185 |
300/340 |
800 |
775 |
460 |
350 |
330 |
11 |
|
ZVF300H-G185/P200T4M |
185/200 |
340/380 |
800 |
775 |
460 |
350 |
330 |
11 |
|
ZVF300H-G200/P220T4M |
200/220 |
380/420 |
900 |
870 |
550 |
400 |
330 |
13 |
|
ZVF300H-G220/P250T4M |
220/250 |
420/470 |
900 |
870 |
550 |
400 |
330 |
13 |
|
ZVF300H-G250/P280T4M |
250/280 |
470/520 |
950 |
920 |
650 |
550 |
385 |
13 |
|
ZVF300H-G280/P315T4M |
280/315 |
520/600 |
950 |
920 |
650 |
550 |
385 |
13 |
|
ZVF300H-G160/P185T4M |
160/185 |
300/340 |
1100 |
|
460 |
|
330 |
cabinet |
Fig.3 |
ZVF300H-G185/P200T4M |
185/200 |
340/380 |
1100 |
|
460 |
|
330 |
||
ZVF300H-G200/P220T4M |
200/220 |
380/420 |
1200 |
|
550 |
|
330 |
||
ZVF300H-G220/P250T4M |
220/250 |
420/470 |
1200 |
|
550 |
|
330 |
||
ZVF300H-G250/P280T4M |
250/280 |
470/520 |
1300 |
|
650 |
|
385 |
||
ZVF300H-G280/P315T4M |
280/315 |
520/600 |
1300 |
|
650 |
|
385 |
||
ZVF300H-G315/P350T4M |
315/350 |
600/640 |
1600 |
|
660 |
|
415 |
|
|
ZVF300H-G350/P400T4M |
350/400 |
640/690 |
1750 |
|
750 |
|
470 |
|
|
ZVF300H-G400/P450T4M |
400/450 |
690/790 |
1750 |
|
750 |
|
470 |
|
|
ZVF300H-G450/P500T4M |
450/500 |
790/860 |
1900 |
|
950 |
|
520 |
|
Fig.4 |
ZVF300H-G500/P560T4M |
500/560 |
860/950 |
1900 |
|
950 |
|
520 |
|
|
ZVF300H-G560/P630T4M |
560/630 |
950/1100 |
1900 |
|
950 |
|
520 |
|
|
ZVF300H-G630T4M |
630 |
1100 |
1900 |
|
950 |
|
520 |
|
Item |
Item Description |
|
Input |
Rated voltage & Frequency |
Single/Three phase 200-240VAC, Three phase 360-440VAC, 50/60Hz |
Allowable Voltage range |
Voltage fluctuate range:±10% Voltage unbalance rate: <3% Frequency fluctuation: ≤±5% |
|
Output |
Rated voltage |
Three phase 0~ input VAC voltage |
Frequency |
0.00~ 600.00Hz |
|
Overload capacity |
Type G: 150% 1minute, 180% 1 second, 200% transient protection Type P: 120% 1minute, 150% 1 second, 180% transient protection |
|
Control Function |
Modulation mode |
Optimal space voltage vector PWM modulation |
Control mode |
Sensorless vector control (SVC),V/F control, Torque control |
|
Frequency accuracy |
Digital setting: Max.Frequency x ±0.01% Analog setting: Max.Frequency x ±0.2% |
|
Frequency resolution |
Digital setting: 0.01Hz Analog setting: Max.Frequency x 0.1% |
|
Starting frequency |
0.00~ 50.00Hz |
|
Torque lift |
Automatic torque lift: To lift the torque automatically according to the output current. Manual torque lift. Range: 0.1~30.0% |
|
Slip compensation |
Setting range: 0~100%. The inverter output frequency can be auto-regulated within this range according to the motor load, so as to reduce the speed variation of the motor due to load fluctuation. |
|
Acceleration/ Deceleration time |
0.1~3600.0 can be set in sequence. |
|
Carrier frequency |
1.0~15.0KHz |
|
Jog function |
Jog frequency range: 0.01~600.00Hz Jog acceleration /deceleration time 0.1~3600.0 can be set. |
|
V/F curve |
1.Linear curve 2.Quadratic curve 3.User defined V/F curve |
Item |
Item Description |
|
Control Function |
Automatic energy-saving operation |
Auto optimize V/F curve according to the load changes to realize the energy saving operation. |
Auto voltage regulation (AVR) |
When the network voltage changes, it can regulate PWM output automatically to maintain constant voltage. |
|
Built-in PID |
It can easily form a closed-loop control system and is applicable to pressure control, flow control and other process control. |
|
Operation Function |
Operating command |
Operation panel control, External terminal control, COM control |
Frequency setting |
Keypad potentiometer setting, Operation panel▲▼setting, External terminal UP/DOWN setting, Analog voltage signal or external potentiometer setting,Analog current signal setting,Terminal combination setting, 485 COM setting and so on . |
|

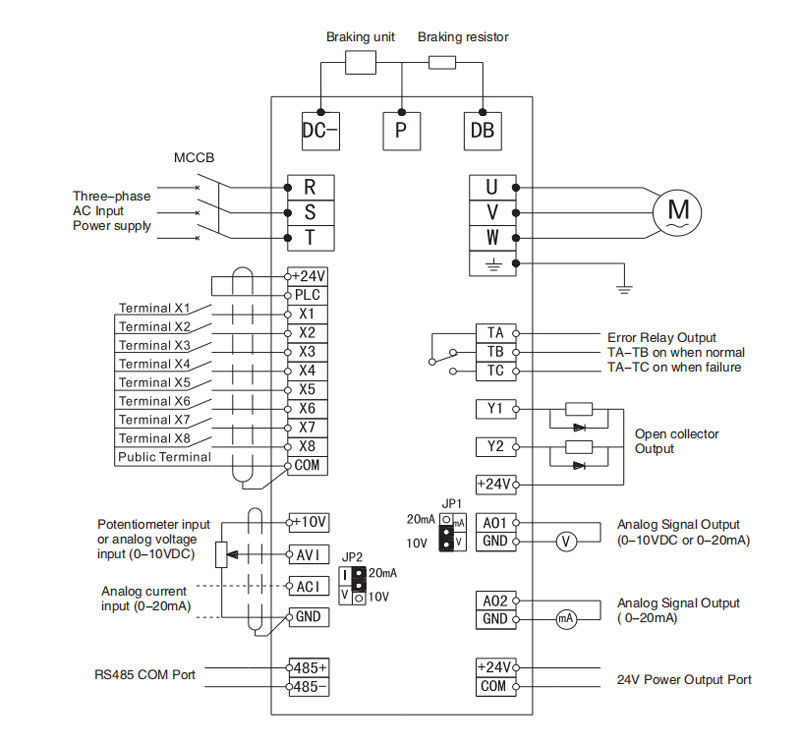

Input Signal |
Forward/Reverse signal, Multi-speed signal, Fault signal, Reset signal, etc. |
|
Output signal |
Programmable relay, Open collector output, Fault signal output. |
|
Multi-function analog and digital output terminal |
It can realize the output frequency, output current and other physical quantity through 0~10V or 0~20mA DC signal and 0~10KHz digital signal output. |
|
Braking function |
Dynamic braking |
With an external braking resistor, the maximum braking torque may reach to 100%. |
DC Braking |
It can be selected when the motor starts or stops with the action frequency of 0~600Hz, action current level of 0~150% and actuation time of 0~50sec., which can be set in sequence. |
|
Other Function |
Skip frequency, Jog function, Counter, Rotation speed tracking, Momentary power loss restart, Frequency upper/lower limiting, Acceleration/Deceleration mode can be adjusted, Frequency meter and Voltmeter output, Multi-speed/program running, Two -wire mode/ three-wire mode control, Wobble frequency control, Multi-function input terminal selection, Fault auto reset, RS485 serial communication. |
|
Protection Function |
Input phase loss protection, Over current protection, Overload protection, Over voltage protection, Under voltage protection, Over heat protection, etc. |
Item |
Item Description |
|
LED display |
Can display the inverter’s real-time running status, monitor parameter, function parameter, fault code and other information. |
|
Matching parts |
Braking assembly, remote keypads with connected wire and communication panel. |
|
Ambient |
Place to be used |
Indoor. NO direct exposure to sun light. FREE FROM dust, corrosive gas, explosive gas, inflammable gas, oil mist, humidity, salt, etc. |
Altitude |
Below 1000 M |
|
Ambient Temperature |
-10℃ to +45℃ ( Bare Machine: -10℃ to +50℃ ) |
|
Humidity |
20%~90%RH, without dew condensation. |
|
Vibration |
<0.5G |
|
Storage temperature |
-20~+60℃ ° |
|
Structure |
Protection class |
IP20 |
Cooling mode |
Forced air cooling |
|
Installation mode |
Wall mounted or floor-type cabinet |
