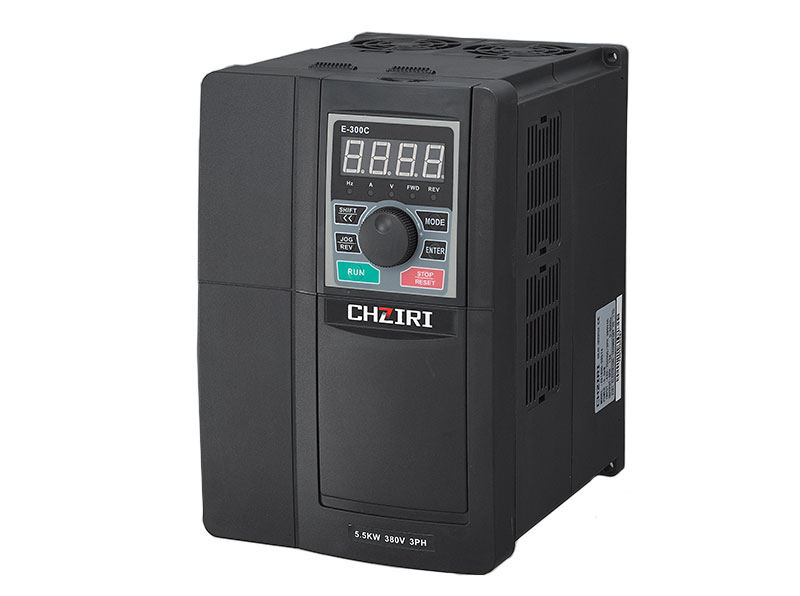

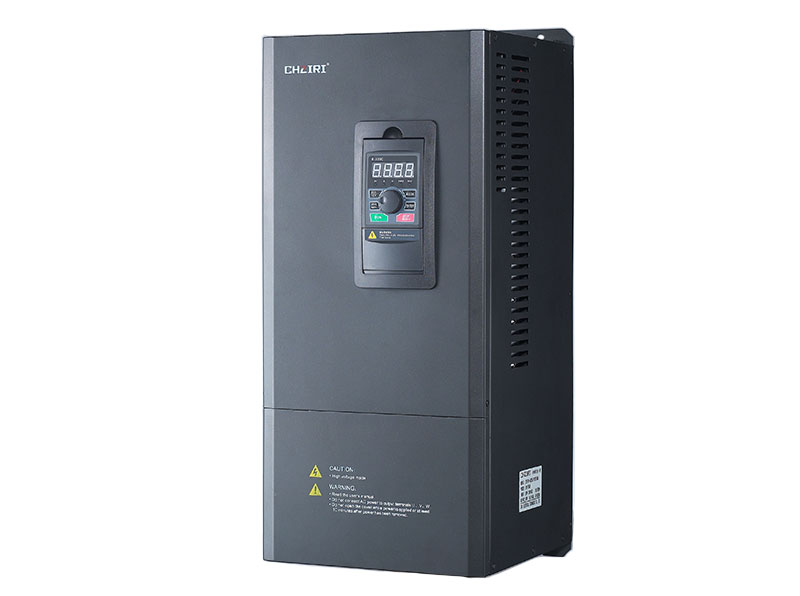

ZVF300 T2 Series inverters are high performance open loop vector inverters for controlling asynchronous AC induction motors.



1.Output frequency :0-600Hz.

2.Multiple password protection mode.

3.Remote control operation keypad, convenient for remote control.

4.V/F curve &multi-inflection point setting, flexible configuration .

5.Keyboard parameter copy function . easy to set the parameters for multi-inverters .

6.Wide industry application . to expand special function according to different industries.

7.Multiple hardware and software protection and optimized hardware for anti-interference technology.

8.Multi-step speed and wobble  frequency running  (external terminal 15 steps speed control).

9.Unique adaptive control technology . Auto current limiting and voltage limiting and under-voltage restrain .

10.Optimized external installation and internal structure and independent air flue design , fully enclosed electrical space design .

11.Output automatic voltage regulation function .(AVR),automatically adjust the output pulse width . to eliminate the  influence  of the grid change on load .

12.Built-in PID regulation function to facilitate the  realization of closed loop control of the temperature ,pressure and flow . and reduce the cost of the control system .

13.Standard MODBUS communication protocol . easy to achieve the communication between PLC,IPC and other industrial equipments.




Application Range:



ZVF300 T2 Series frequency drive is suitable for all kind of mechanical devices such as metallurgy, plastic, textile, food, chemical industry, paper making, drug manufacture, printing ,construction materials and hoisting for driving and speeding control of AC asynchronous  motor .

ZVF300 T2 Series Frequency Drive

ZVF300 Three phase 220V Frequency Drive

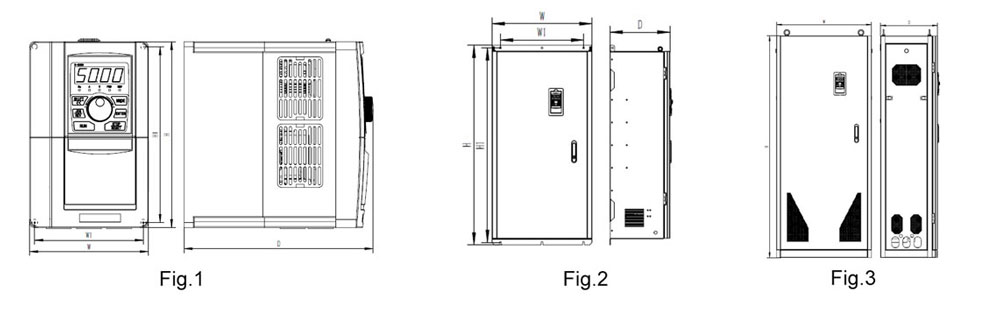

Inverter Outline& Mounting Dimension (Unit: mm)



Input Voltage(V)

Output Voltage (V)

Power Range (kW)

Three phase 220V± 20%

Three phase 0~input voltage

0.4kW~110kW

Overload Capacity : 150% 1 minute ;180% 1 second ;200% transient protection .



Model Selection





Inverter Model

Power

(KW)

Current

(A)

          Dimension (mm)

Figure

H

H1

W

W1

D

d

ZVF300-G0R4T2MD

0.4

2.4

185

175

118

108

170

Ф5

Fig.1

ZVF300-G0R7T2MD

0.75

4.5

ZVF300-G1R5T2MD

1.5

7.0

185

175

118

108

190

Ф5

ZVF300-G2R2T2MD

2.2

10

ZVF300-G3R7T2MD

3.7

16

215

205

145

135

193

Ф5

ZVF300-G5R5T2MD

5.5

25

265

253

185

174

215

Ф6

ZVF300-G7R5T2MD

7.5

30

380

360

220

145

230

Ф6

Fig.2

ZVF300-G011T2M

11

42

460

443

260

177

268

Ф7

ZVF300-G015T2M

15

55

ZVF300-G018T2M

18.5

70

620

603

265

182

300

Ф9

ZVF300-G022T2M

22

80

ZVF300-G030T2M

30

110

ZVF300-G037T2M

37

130

720

702

365

240

360

Ф9

ZVF300-G045T2M

45

160

ZVF300-G055T2M

55

200

ZVF300-G075T2M

75

270

1190



493



390



Fig.3

ZVF300-G090T2M

90

320

ZVF300-G110T2M

110

380

1430



660



415
