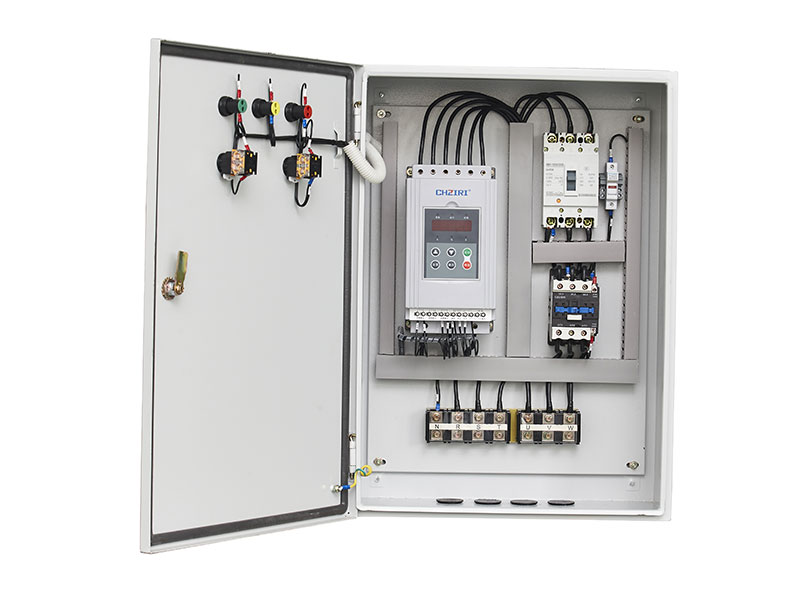

ZJRG series soft starter control panel is suitable for three-phase AC squirrel cage induction motors.The control panel is mainly composed of a soft starter, AC contactor (bypass) and circuit breaker (short circuit protection). Have the function of protecting the motor improvement in motor starting and running process; adopt closed-loop control, greatly improving the stability and reliability of soft torque start and soft torque stop, run by the bypass contactor, the power consumption is close to zero.

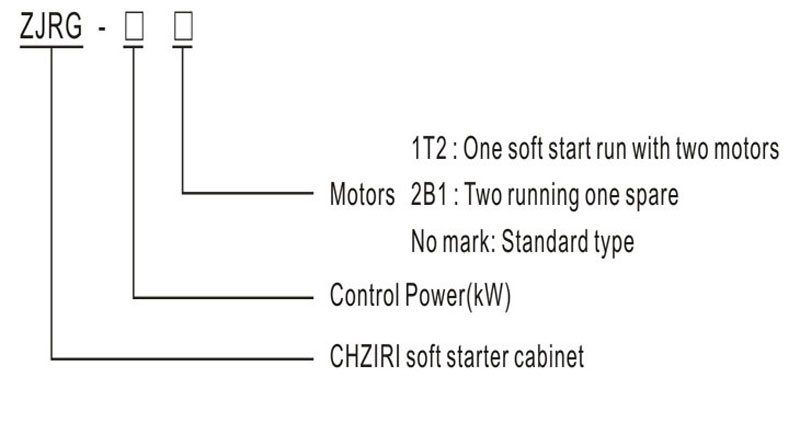

Model Description:





Order information



Soft starter cabinet have many specification , different high technical request . Please make sure you have a detailed understanding of how the equipment load works and performance indicators, and select the electrical control cabinet features before ordering.

CHZIRI Electrical will offer the clients standard design if no requirements marked. So please specify in the contract if you have special requirements.

Main Technical Indications



●Power voltage three-phase phase 380V±15%,frequency :50/60HZ.

●Start times: less than 20 times per hour.

●Altitude: less than 3km, if beyond 3km, shall improve power.

●Environment temperature: -30~+55℃.

●Environment humidity: less than 90%, No dew condensation phenomenon.

●Application: no corrosive gas, no Conductive dust, good ventilation condition.

●Protect class: IP20、 IP30.





Technical Features



●Starting time can be preset, set different starting time according to different load types.

●Initial voltage can be preset, different initial voltage is set according to different load type.

●With current limiting function, the starting current does not exceed the setting current value.

●Stop mode  have soft stop and free stop.

●Bypass contactor function, starting complete, can be connected to bypass contactor.

●One soft starter run multiple motors, One soft starter can start multiple motors in turn.

●Have 14 kinds of protection functions.

Application load type



This soft starter cabinet can meet the requirement of most heavy load. The table below is just for reference only.



Varieties of Application Loads

Start Ramp Time (S)

Stop Ramp Time (S)

Inception Voltage (%)

Voltage Start (Maximum Current-limiting Value)

Current-limiting Start

Centrifugal Pump

16

20

40

4

2.5

Ball Grinder

20

6

60

4

3.5

Fan

26

4

30

4

3.5

Piston Type Compressor

16

4

40

4

3

Light Load Motor

16

2

30

4

3

Elevating Mechanism

6

10

60

4

3.5

Mixer

16

2

50

4

3

Crusher

16

10

50

4

3.5

Screw Compressor

16

2

40

4

3

Spiral Conveyor

20

10

40

4

2

Leather Belt Conveyer

20

10

40

4

2.5

Heat Pump

16

20

40

4

3

Schematic diagram

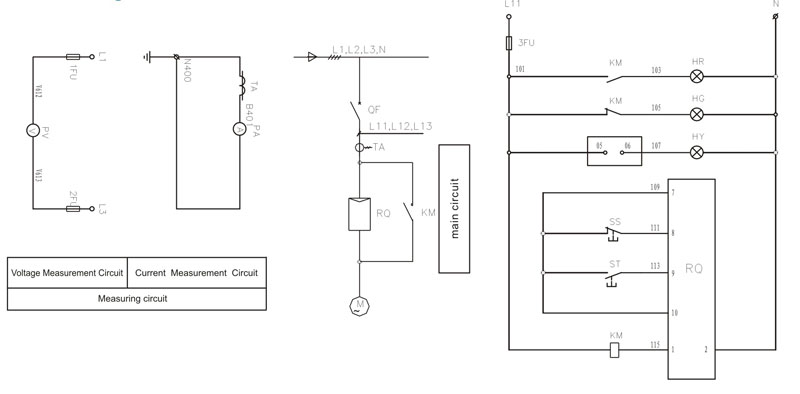

ZJRG/1T1 Wiring Diagram

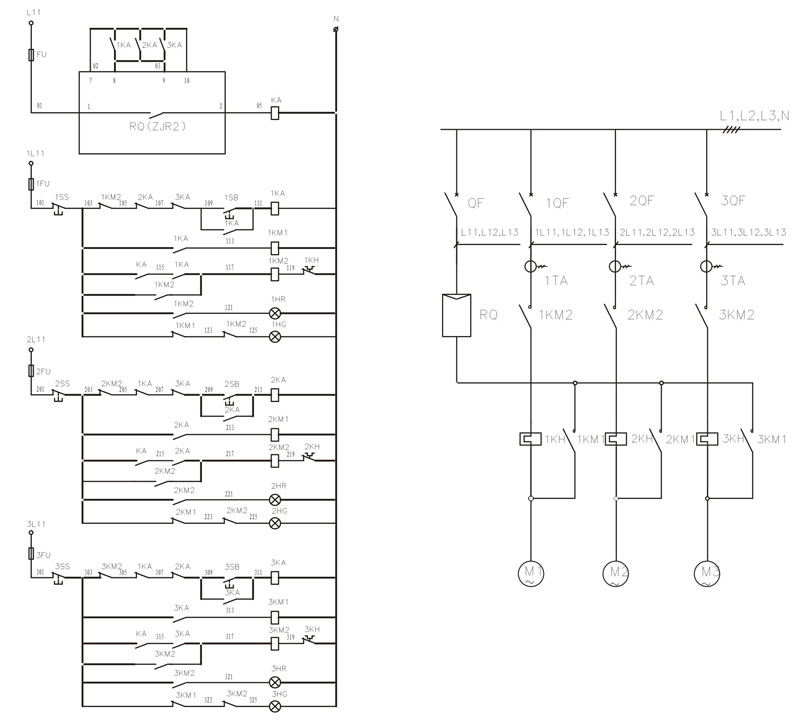

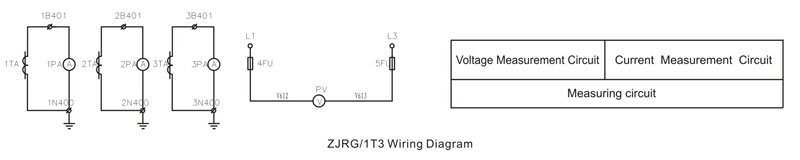

ZJRG/1T3 Wiring Diagram
