Solution

Crusher

Publish Time: Author: Site Editor Visit: 3709

Please check crusher equipment file form.

Equipment Model QTY Power Solution
screw sand washer XL-915 2 11KW VFD
vibrating screen 4YZS1848 1 18.5KW VFD
vibrating screen 4YZS1860  1 22KW VFD
Cone crusher HST160(H1)  1 132KW soft starter
Jaw Crusher PE750X1060  1 110KW  soft starter
vibrating feeder GZG 100-4H  2  1.5KW VFD
B100×25M belt conveyor   1 22KW VFD
B1000X22M belt conveyor   1 15KW VFD
B1000X26M belt conveyor   1 22KW VFD
B650×23 M belt conveyor   1 7.5KW VFD
BB650X26M belt conveyor   1 7.5KW  VFD
B650X25M belt conveyor   7 7.5KW VFD
B800X25M belt conveyor   1 15KW VFD
B650X30M belt conveyor   1 7.5KW VFD
Water pump   2 15KW VFD
Total   24

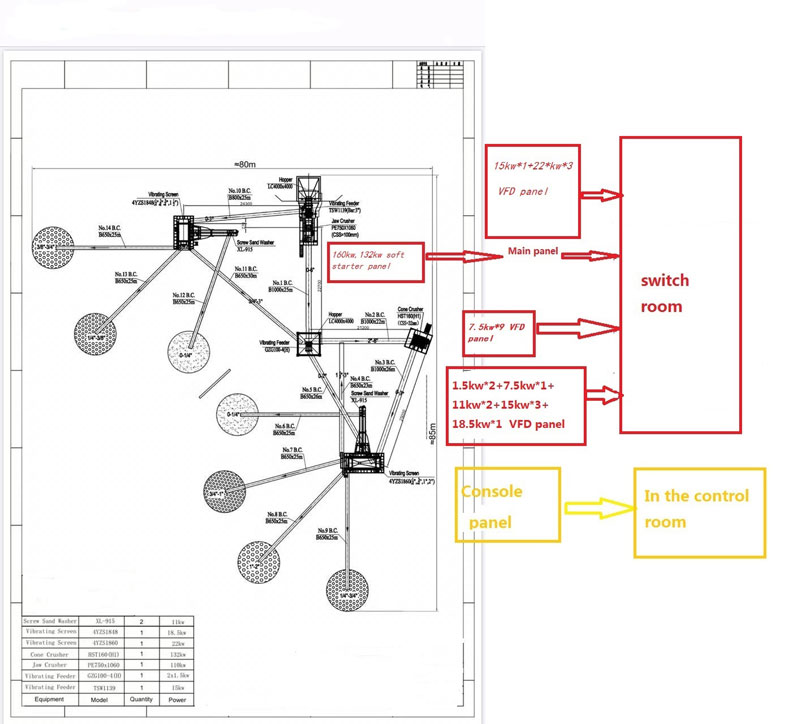

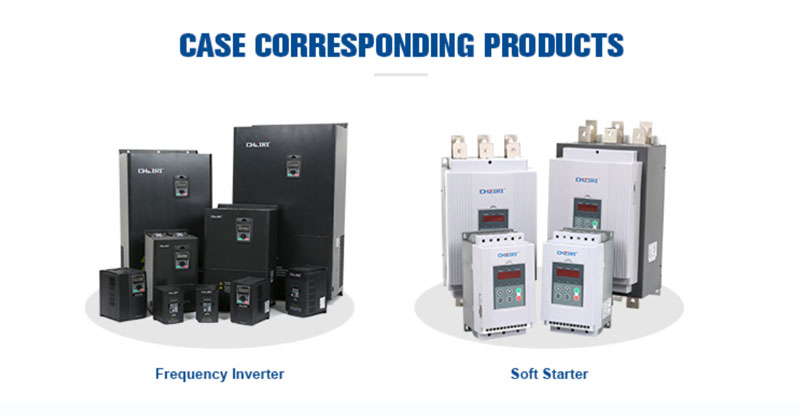

Our solution is to provide GGD panel with VFD and soft starter.

  • Soft starter control panel:(132KW+160KW)Cone Crusher+Jaw Crusher=Main panl
  • Note:soft start amplifies a power
  • CHZIRI VFD Panel :(7.5KW*9) B650*23M belt cnveyor+B650*26M belt cnveyor+B650*25M belt conveyor
  • VFD Panel:(11KW*2+18.5KW*1+1.5KW*3+15KW*2)Screw Sand washer+vibrating screen+vibrating feeder+B1000*22M belt conveyor+b800*25M  belt cnveyor+water pump
  • VFD Panel:(15KW*1+22KW*3)  Water pump+vibrating screen
  • Total amount:1 Unit soft starter control panel,3 Units VFD Panels.Also need to put a Control  Console in the control room.

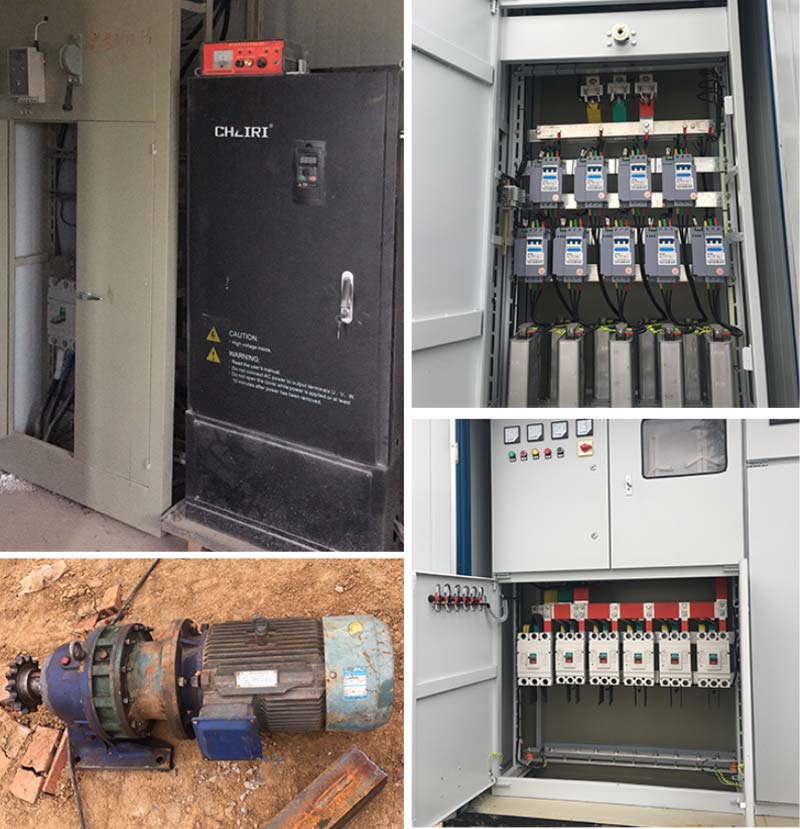

Photos just your reference

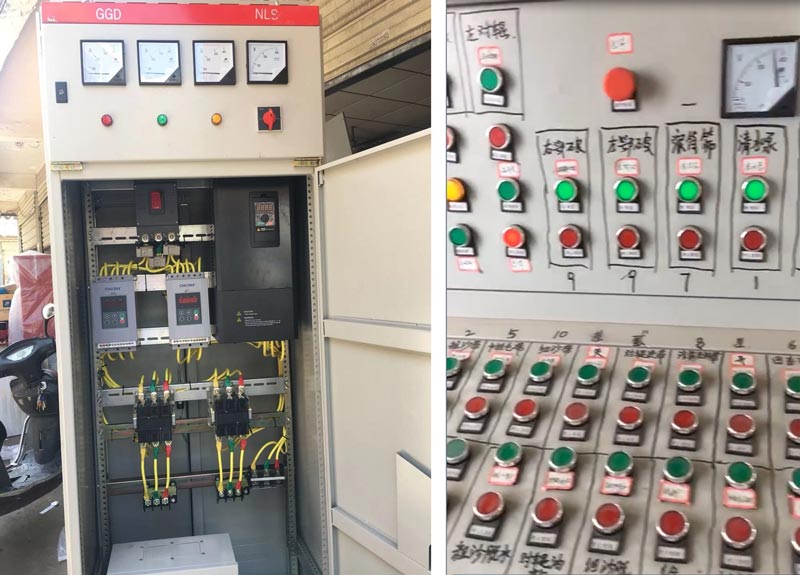

GGD panel Control  Console

The GGD cabinet is placed in the power distribution room. The Control Console is placed in the control room (similar to the platform,you can see the operation of the entire equipment).
