1. With two models of external bypass and internal bypass, it is convenient for customers to choose.

2. Main terminal connecting line is fixed directly by screws, which is safe and reliable.

3.The control line alone power supply is more stable, can make the main power supply range covers 220-480V without changing the machine.

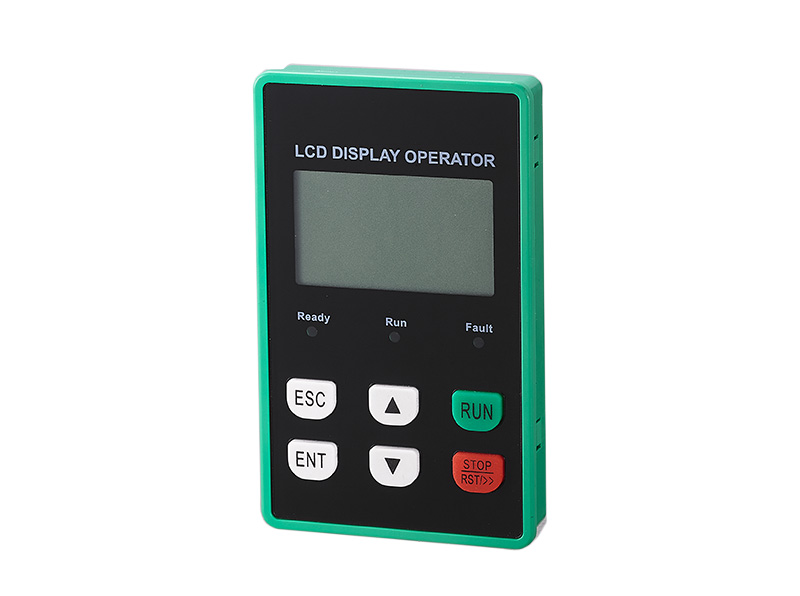

4.LCD display, standard Chinese and English options, more convenient to use, can also be customized according to customer requirements of other language types.

5.Three groups motor parameters can be switched, more convenient to use.

6.With PTC temperature sensor interface, motor protection is more comprehensive.

7.Equipped with RS485 communication interface as standard, it is more convenient for group network control.

8.10 sets fault records, Easier to find problem .

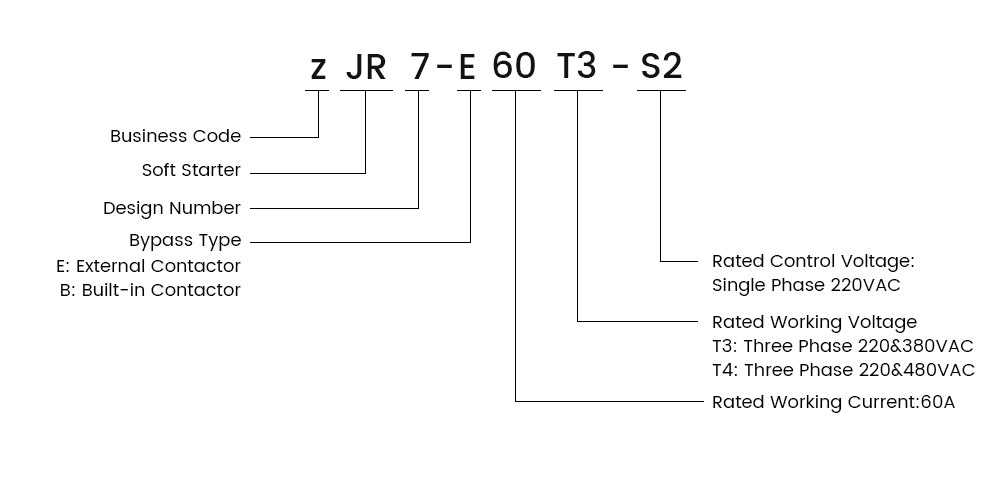

Model Description

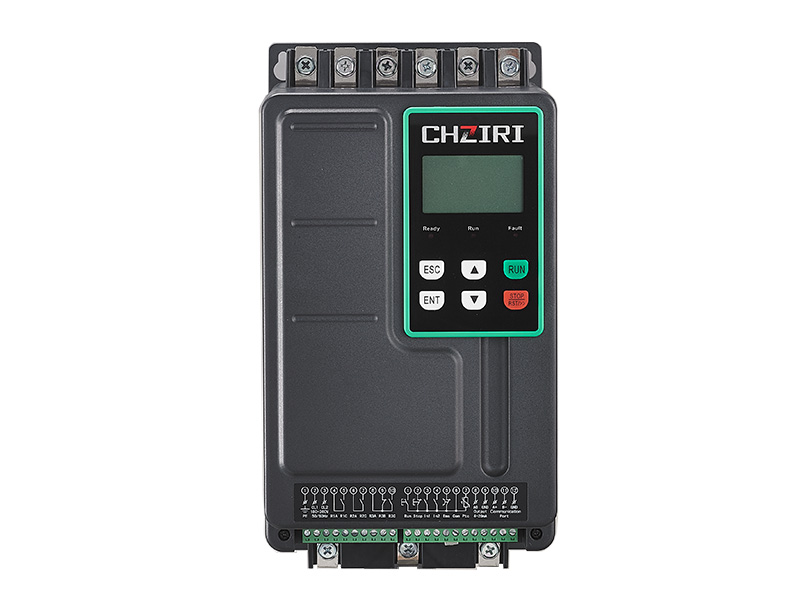

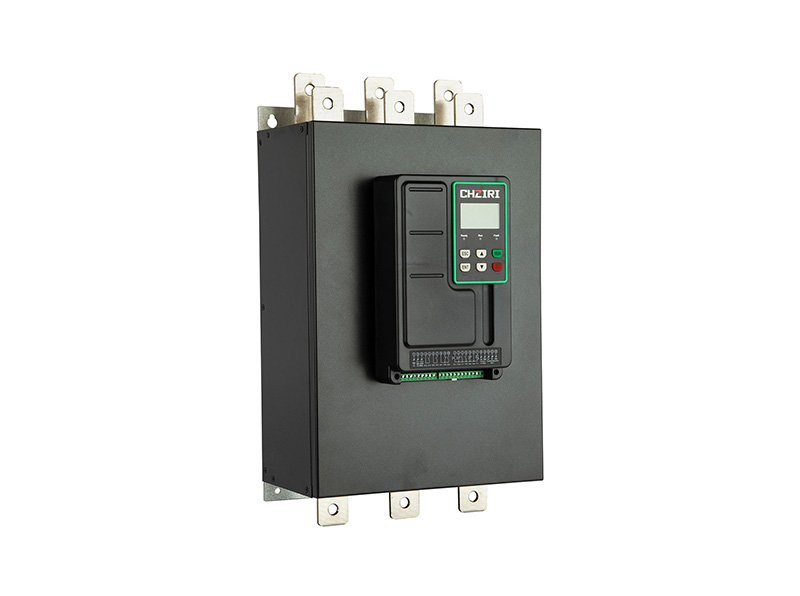

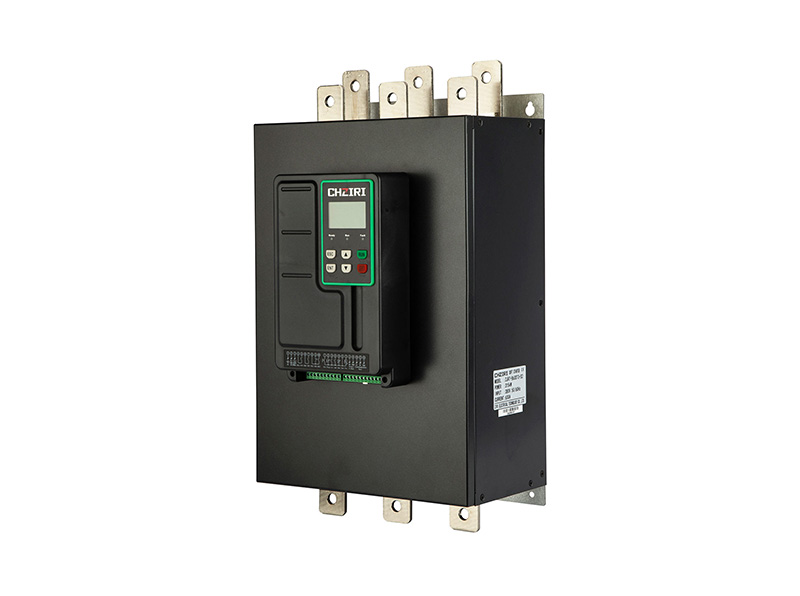

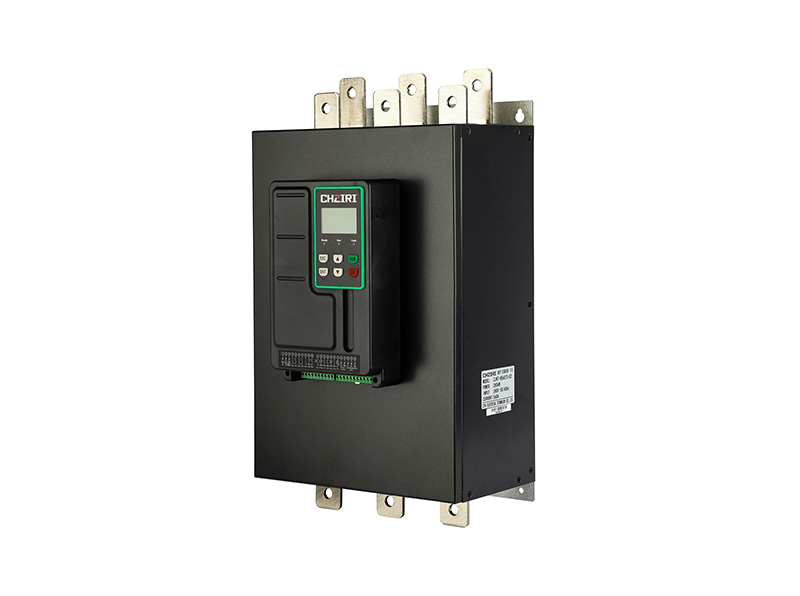

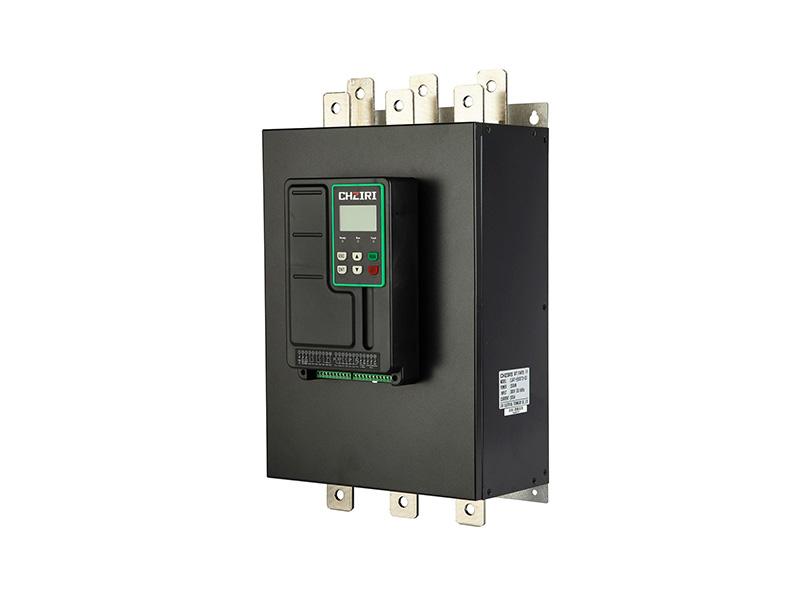

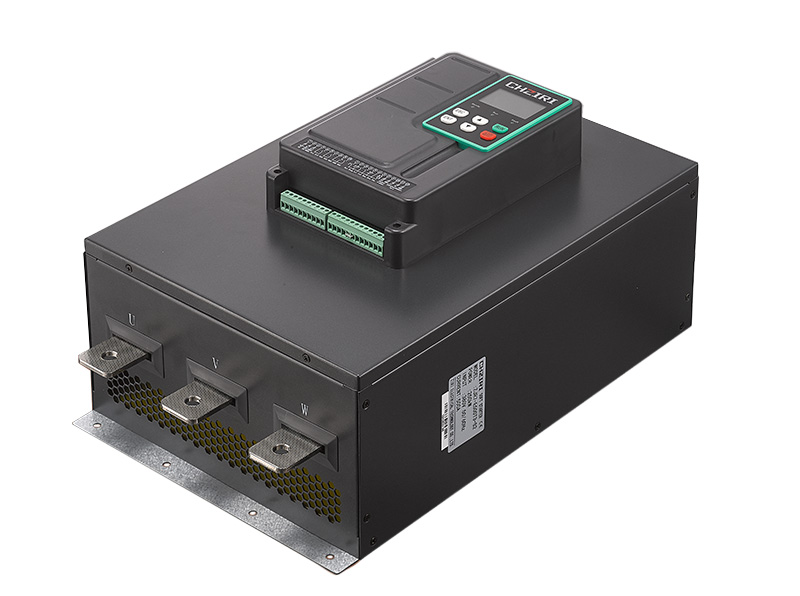

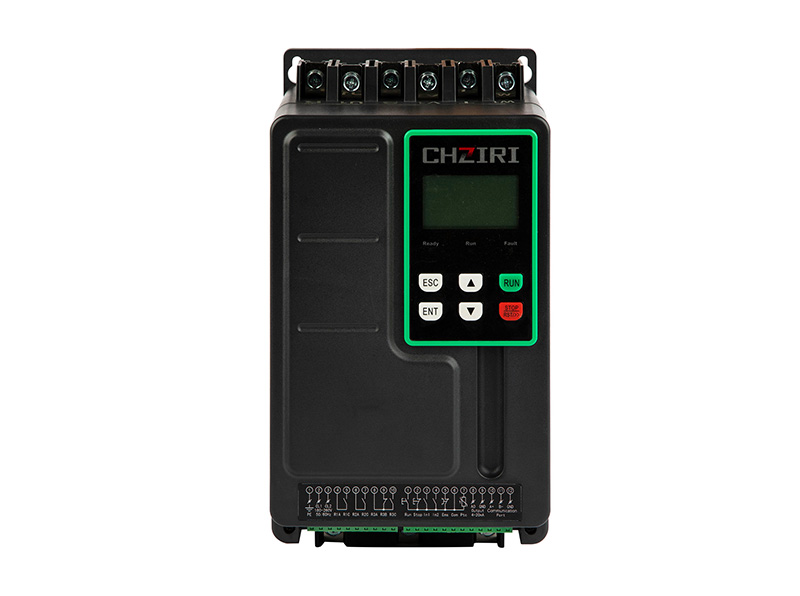

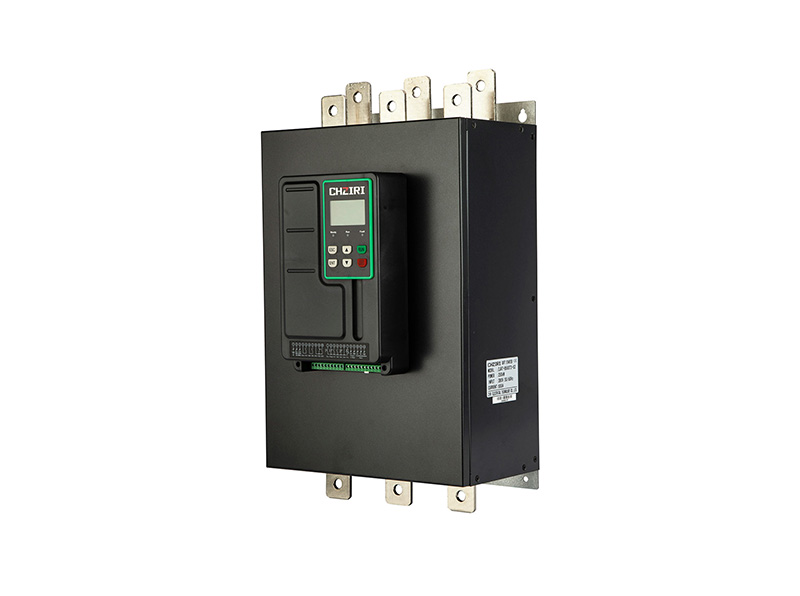

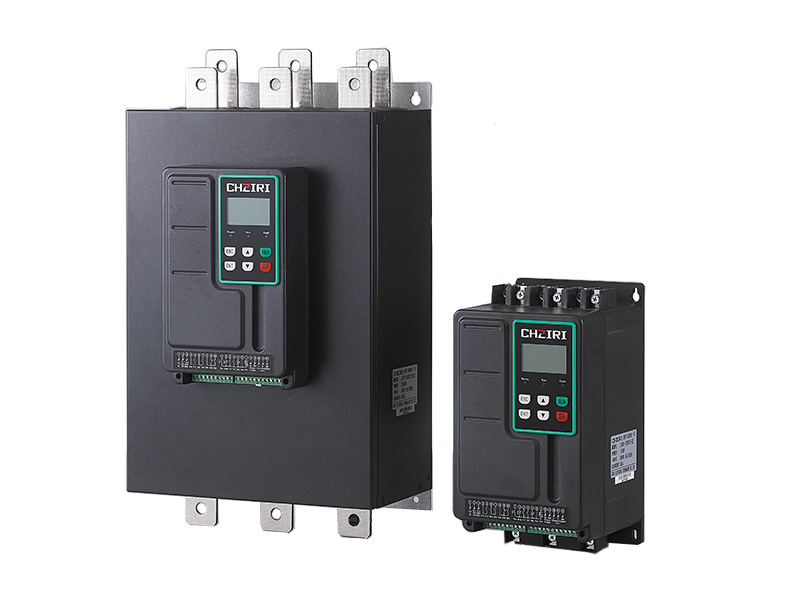

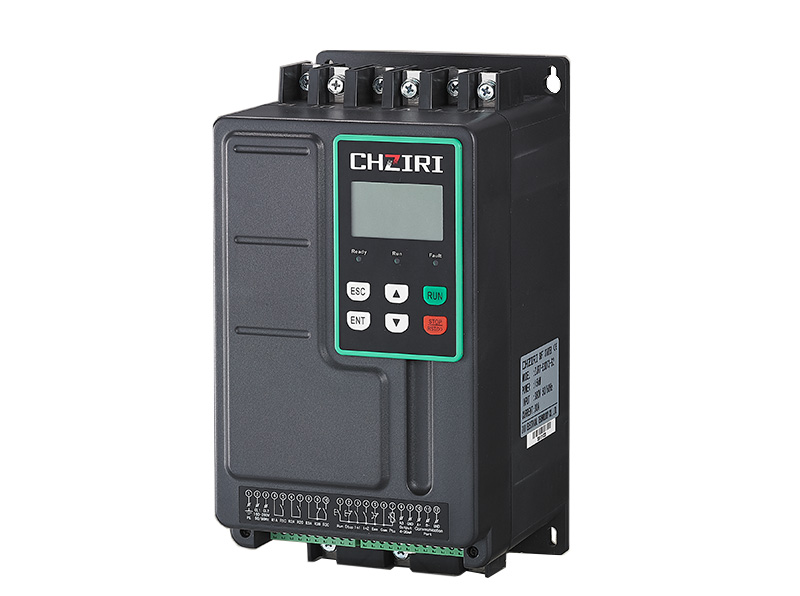

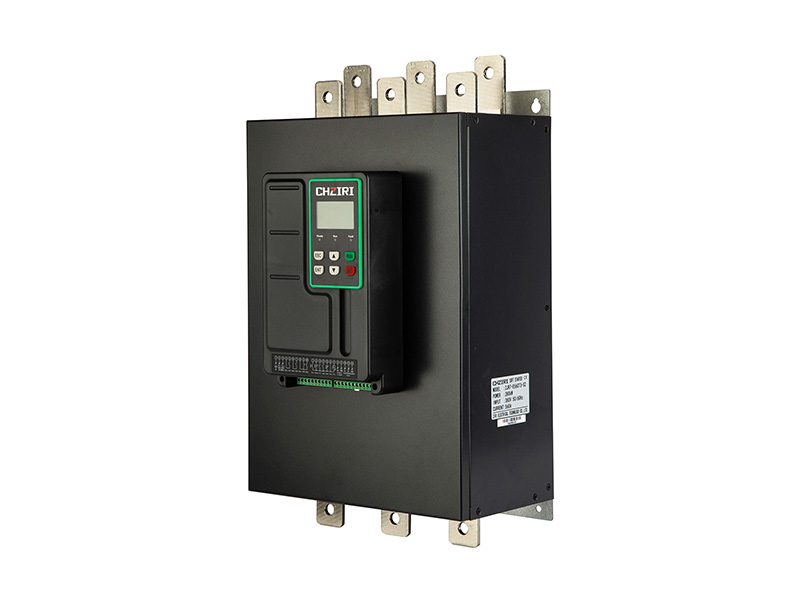

ZJR7-E Series Bypass Contactor Soft Starter

Soft starter Model	Rated Power (kW)	Rated Current (A)	Outline Size (mm)				Install Size (mm)
Soft starter Model	Rated Power (kW)	Rated Current (A)	H	H1	W	D	H2	W1	W2	Φd
ZJR7-E11T3-S2	5.5kW	11A	290	-	155	170	272	138	-	5.5
ZJR7-E15T3-S2	7.5kW	15A	290	-	155	170	272	138	-	5.5
ZJR7-E22T3-S2	11kW	22A	290	-	155	170	272	138	-	5.5
ZJR7-E30T3-S2	15kW	30A	290	-	155	170	272	138	-	5.5
ZJR7-E37T3-S2	18.5kW	37A	290	-	155	170	272	138	-	5.5
ZJR7-E44T3-S2	22kW	44A	290	-	155	170	272	138	-	5.5
ZJR7-E60T3-S2	30kW	60A	290	-	155	170	272	138	-	5.5
ZJR7-E74T3-S2	37kW	74A	290	-	155	170	272	138	-	5.5
ZJR7-E90T3-S2	45kW	90A	290	-	155	170	272	138	-	5.5
ZJR7-E110T3-S2	55kW	110A	290	-	155	170	272	138	-	5.5

Soft starter Model	Rated Power (KW)	Rated Current (A)	Outline Size (mm)				Install Size (mm)
Soft starter Model	Rated Power (KW)	Rated Current (A)	H	H1	W	D	H2	W1	W2	Φd
ZJR7-E150T3-S2	75kW	150A	380	360	220	230	340	180	-	7
ZJR7-E180T3-S2	90kW	180A	380	360	220	230	340	180	-	7
ZJR7-E220T3-S2	110kW	220A	380	360	220	230	340	180	-	7
ZJR7-E264T3-S2	132kW	264A	490	447	270	230	422	230	-	7
ZJR7-E320T3-S2	160kW	320A	490	447	270	230	422	230	-	7
ZJR7-E370T3-S2	185kW	370A	490	447	270	230	422	230	-	7
ZJR7-E400T3-S2	200kW	400A	490	447	270	230	422	230	-	7
ZJR7-E440T3-S2	220kW	440A	490	447	270	230	422	230	-	7
ZJR7-E500T3-S2	250kW	500A	560	497	310	230	472	270	100	7
ZJR7-E560T3-S2	280kW	560A	560	497	310	230	472	270	100	7
ZJR7-E630T3-S2	315kW	630A	560	497	310	230	472	270	100	7
ZJR7-E710T3-S2	355kW	710A	590	527	350	230	502	300	110	9
ZJR7-E800T3-S2	400kW	800A	590	527	350	230	502	300	110	9
ZJR7-E900T3-S2	450kW	900A	590	527	350	230	502	300	110	9
ZJR7-E1000T3-S2	500kW	1000A	660	577	420	230	552	370	135	9
ZJR7-E1120T3-S2	560kW	1120A	660	577	420	230	552	370	135	9
ZJR7-E1260T3-S2	630kW	1260A	660	577	420	230	552	370	135	9

Application Settings

As load conditions change,parameters often need to be adjusted.The following table is for reference only.

Application	Starting boost time (s)	Stop depressurization time (s)	Starting voltage (%)	Voltage starting (current limit value)
Centrifugal Pump	16	20	40	4
Ball Mill	20	6	60	4
Fan	26	4	30	4
Piston Compressor	16	4	40	3
Light Load Motor	16	2	30	3
Lifting Machinery	6	10	60	3.5
Mixer	16	2	50	4
Crusher	16	10	50	4
Screw Compressor	16	2	40	3
Spiral Conveyor Belt	20	10	40	4
Belt Conveyor Belt	20	10	40	3
Heat Pump	16	20	40	3

Item		Item Description
Rated working voltage		Three Phase 220-480VAC±10%/50(60)Hz
Rated limit short-circuit current		20kA (400A and Below)	30kA (400A and above)
Coordination type		Type I
Use categories		AC-53b
Rated control supply voltage		180-260VAC
Rated insulation voltage		660V
Applicable motors		Squirrel-cage three-phase asynchronous motors
Number of starts		It's recommended that No more than 5 times per hour, the number of starts can be set in the parameters
Control mode		(1) Operation panel control; (2) External terminal control; (3) Communication control
Start Mode		⑴Voltage ramp starting; ⑵Torque Start; ⑶Kick start+Voltage ramp Start ⑷Kick start +torque start
Stop Mode		⑴Soft Stop; ⑵ Free Stop
Protection Function		⑴Instantaneous stop terminal open circuit fault; ⑵Soft starter overheating; ⑶Motor overheating; ⑷Input Phase loss; (5)Output phase loss; ⑹Three phase unbalance; ⑺Underload protection; ⑻Overload protection; ⑼The power supply voltage is too low; ⑽The power supply voltage is too high; ⑾Error setting parameters; ⑿The load is shorted circuit ; ⒀frequency error; ⒁External faults; ⒂ The starting time is too long; ⒃ Too many starting times and etc.
Ambient	Place to be used	Indoor; no corrosive gases, no conductive dust; well ventilated.
	Altitude	The altitude does not exceed 1000m, if it exceeds 1000m and is less than 3000m, the current is reduced by 1% for each additional 100m.
	Ambient temperature	Ambient temperature should be between -10℃～+40℃, +40℃～+50℃ should be derated, the current is derated by 2% for every 1℃ rise in temperature.
	Ambient humidity	The relative humidity is no more than 90%, without dew condensation .
	Vibration	Vibration force should be below 0.5G
Structure	Protection Class	IP20
	Cooling Mode	Natural air cooling
