how does a soft start work?

Publish Time: Author: Site Editor Visit: 1548

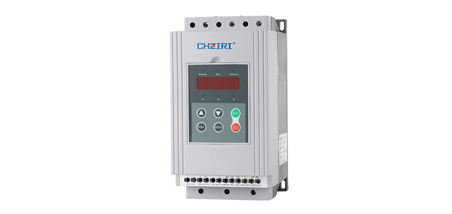

Soft start is a device used to control the starting process of an AC motor. Its main purpose is to limit the initial large current inrush of the motor at startup, thereby protecting the motor and power system from potential damage.

When the motor is started, if there is no proper control, due to the relatively small impedance of the motor, a very high starting current may be generated. This current is usually several to ten times the current of the motor during normal operation. Such high currents will cause severe stress on the motor and power system, and may even cause damage.



1. how does a soft start work?



Current regulation and ramp-up:
The soft starter uses internal electronic circuits to gradually increase the motor supply voltage or current, which is called "current ramp". This process can be achieved with the help of capacitors, resistors or semiconductor devices. The current ramp is designed to suppress the starting current spike, reduce the impact of instantaneous large current on the power grid, and reduce the starting pressure and loss of mechanical equipment.
Voltage adjustment and control:
The soft starter flexibly adjusts the output voltage change speed and the final target voltage based on the set parameters. This fine control is performed by the built-in circuit logic or microprocessor to ensure that the motor starting process is stable and smooth.
Protection performance:
Soft starters generally integrate multiple safety protection mechanisms such as overcurrent, overload, and short circuit. These functions monitor the operation status of the motor in real time. If the current is too large or short-circuited, the power supply will be immediately cut off or corresponding measures will be taken to prevent equipment damage or even accidents.
Start time adjustment:
The soft starter provides the option of adjusting the start time length, which is convenient for users to adjust according to actual needs. Appropriately extending the start time can help further reduce the impact of the motor and its supporting equipment when starting, especially for high-energy consumption equipment or occasions that require frequent start and stop, providing strong support for optimized operation.



2. Benefits of using a soft starter


1. Reduce the impact on the power grid: The soft starter can effectively reduce the impact current generated during the startup process by gradually increasing the current, thereby reducing the adverse effects on the power grid.

2. Ensure equipment safety: The soft starter can reduce the mechanical stress caused by the startup process, prevent problems such as overcurrent, overload, and overvoltage, and extend the life of the equipment.

3. Improve overall operating efficiency: The soft starter can not only maintain system stability, but also reasonably allocate resources, thereby speeding up and enhancing system stability.

4. Easy to use and maintain: The soft starter has a user-friendly control interface and convenient operation, which is easy to maintain; and due to the maintenance-free design, the maintenance cost is correspondingly reduced.

5. Achieve energy saving and cost reduction: Since the current is small during the startup phase, the soft starter is conducive to energy saving and control of corporate operating costs.

6. Reduce electromagnetic interference: The soft starter can effectively reduce the electromagnetic interference generated during the startup process by gradually increasing the current, thereby improving the electromagnetic compatibility of the equipment.

7. Provide a wide range of current and voltage settings: The soft starter can flexibly adjust the startup parameters according to needs in order to obtain the best startup effect.

8. With soft stop function: The soft starter can gradually reduce the voltage when the motor stops, avoiding impact damage caused by sudden stopping and protecting the safety of the equipment.
