Our DOL starter panel connects the motor directly to the power supply, thus achieving full voltage starting. The rotor induced current is high. This makes the peak current reach 5 - 8 times the nominal current. The motor soft starters are all 220V 60Hz, and each set is equipped with a switchboard with a main circuit breaker.
Soft Starters for electric motors all are 220V 60Hz each set have panel board with Main Breakers

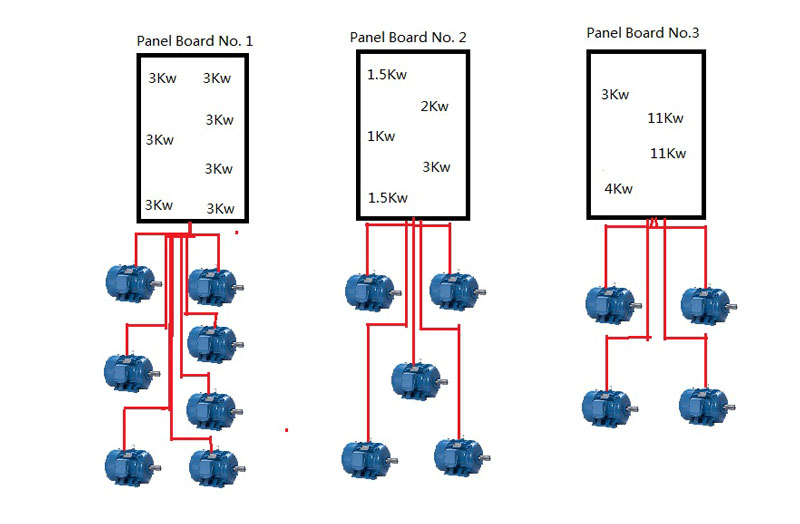

1. 7 units 3Kw
2. 1Kw, 2Kw, 3Kw, 2x 1.5Kw
3. 3Kw, 4Kw, 2x 11Kw

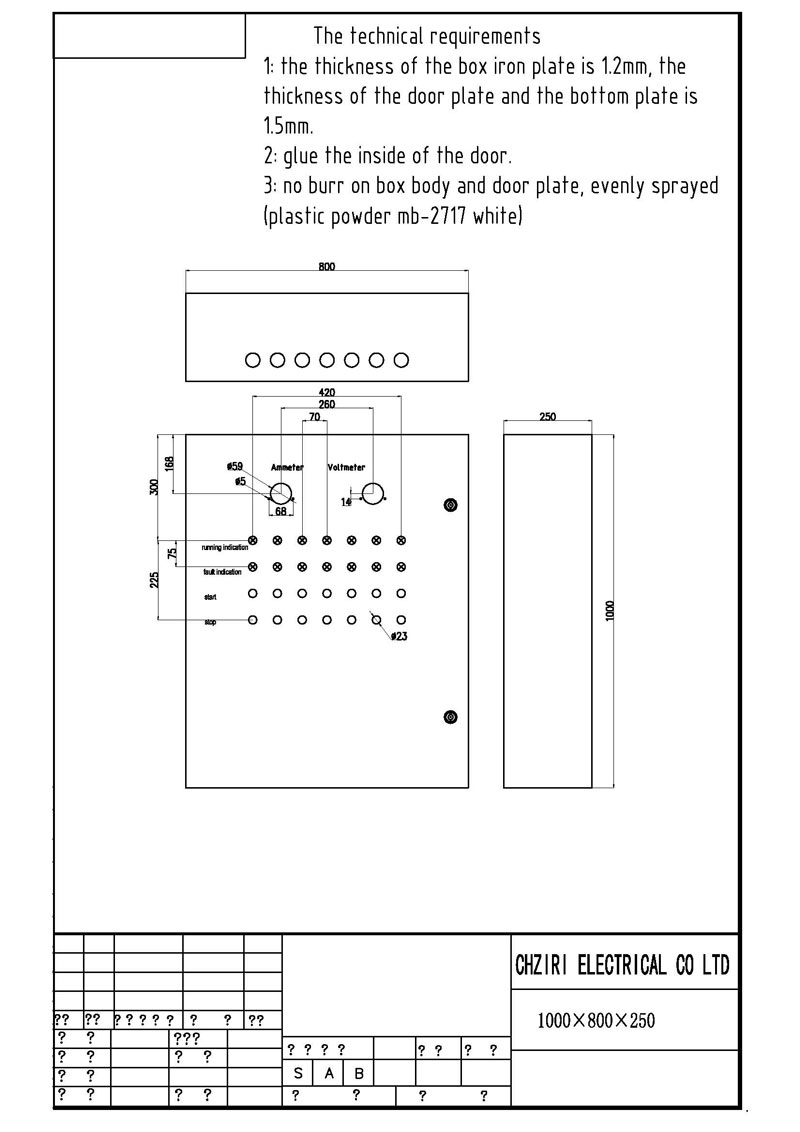

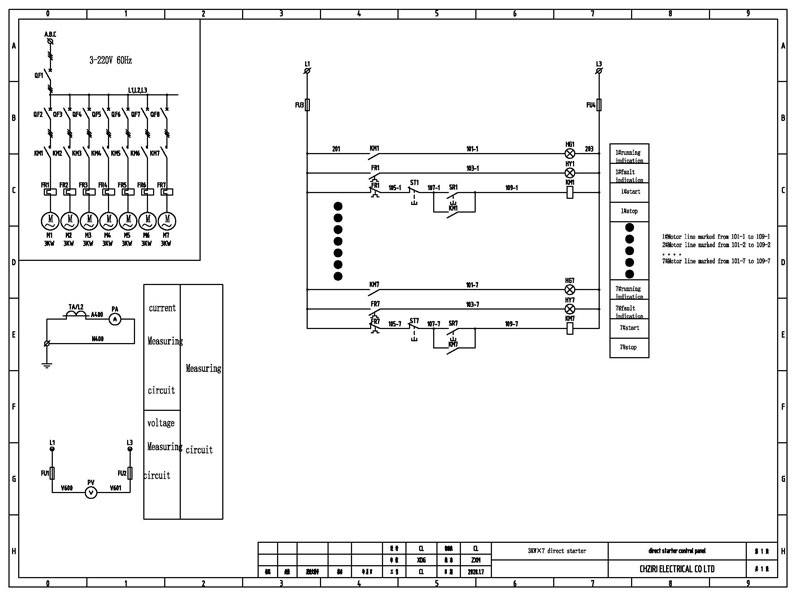

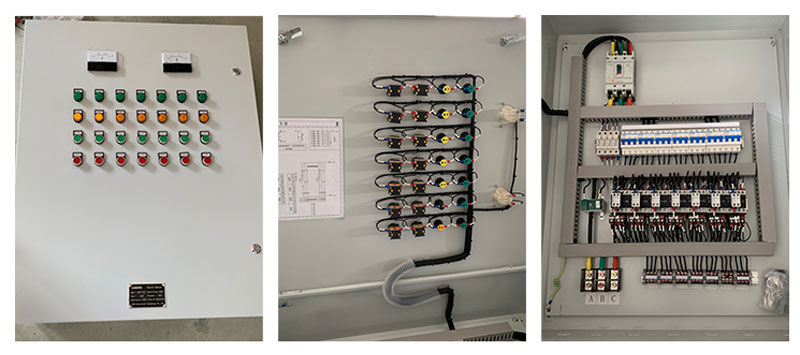

1. DOL starter control cabinet--7 units 3Kw

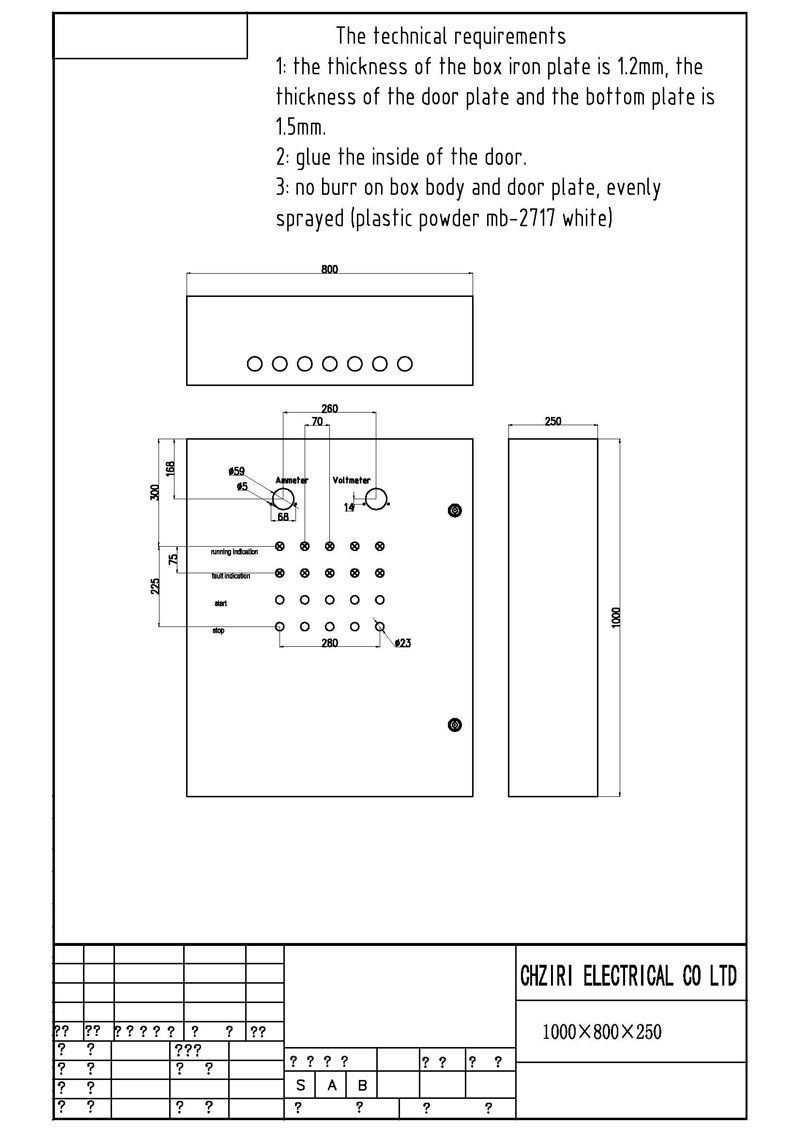

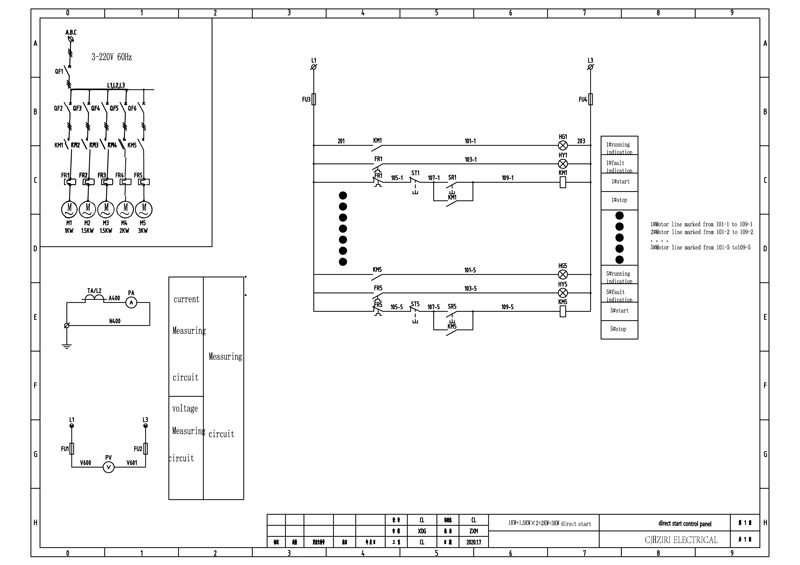

2.DOL starter control cabinet --1Kw, 2Kw, 3Kw, 2x 1.5Kw

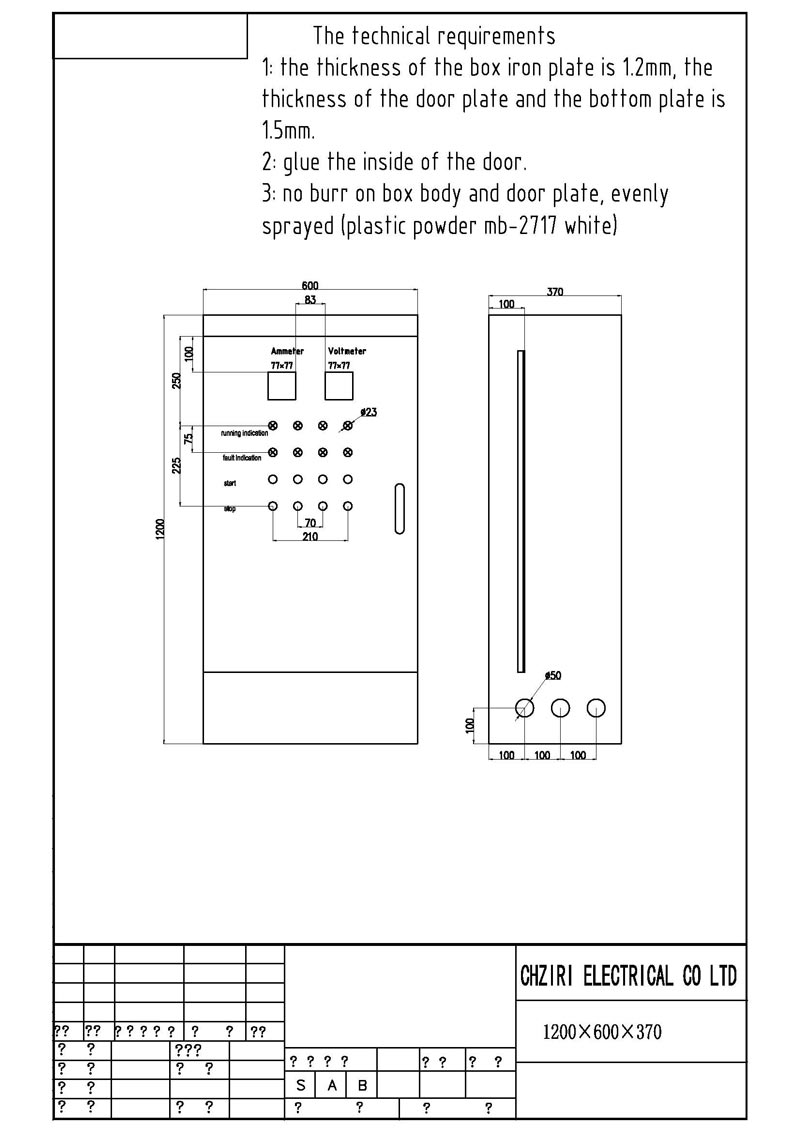

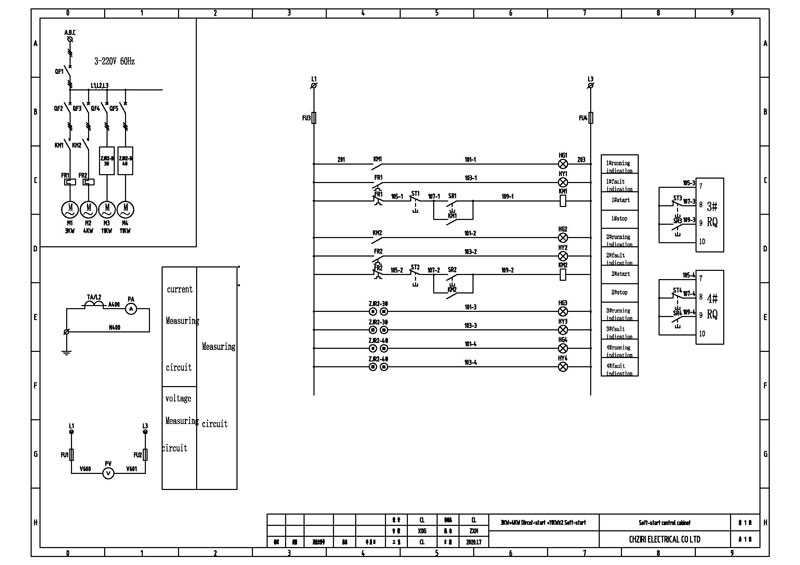

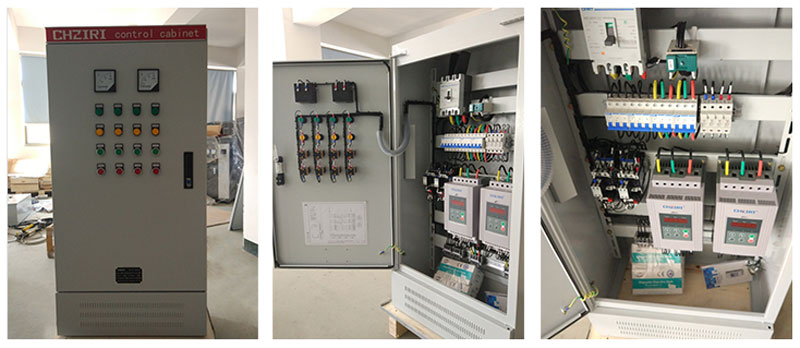

3. Soft starter control cabinet--3Kw, 4Kw, 2x 11Kw
