AC Input Reactor (Voltage drop 2%)

AC Input Reactor (Voltage drop 2%)
AC Input Reactor (Voltage drop 2%)

Product Profile

CHZIRI Input AC reactor is a current-limiting device mainly used for the input side of the drive so as to protect the exchange drive from the influence of the transient overpressure. It can also reduce the surge and peak current, increase the real power factor, restrain the harmonic wave in power grid and improve the function of the input current waveform.

Due to the excellent foil winding structure, input AC reactor is characterized by small DC resistance, strong ability to withstand short circuit and strong short-time overload capability. F Class insulation materials with reliable performance make our product working even in harsh operating conditions. Designed with low magnetic flux density, this line reactor has high linearity and powerful overload capacity. Moreover, combined with VPI process, the reactor noise is low. The core of our AC line reactor is made by grain-oriented cold rolled silicon steel sheets, so it features of high efficiency, low core loss and low temperature rise.

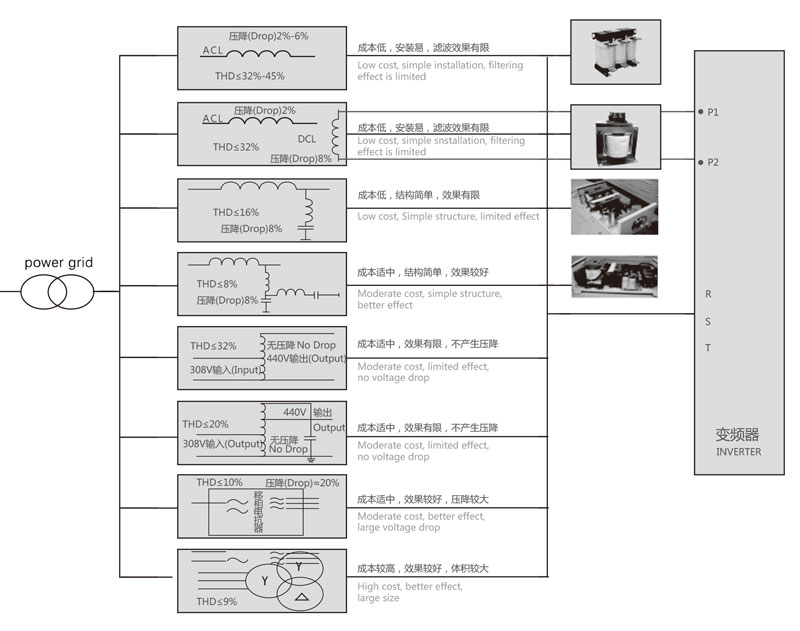

Solution for the Frequency Input Terminal



Technical Data:

1.Rated operating Voltage: φ3/380V/50Hz
2.Rated operating current: 5A to 1600A
3.Operating environment temperature:40℃
4.Dielectric strength: Core-wingding 3000VAC/50Hz/5mA/10S
No flashover breakdown(factory test)
5.Insulation Resistance>1000VDC, Insulation resistance value >100MΩ.
6.Noise of the reactor is less than 65dB ( Tested at the point with a horizontal distance of 1 meter away from the reactor).
7.Level of protection:IP00
8.Insulation class: Above F
9.Executive standard of product:GB19212.1-2008,GB19212.21-2007.GB1094.6-2011.



Benefits:

◆ Obvious interference to other devices from power supply (such as interference, overvoltage)
◆ Interphase voltage is unbalanced >1.8% of rated voltage
◆ Low impedance line (Power transformer is about 10 times of rated data of inverter)
◆ Large quantity of inverter mounted on the same power line but have to minimize line current
◆ power factor calibrating capacitor or power factor correcting unit applied

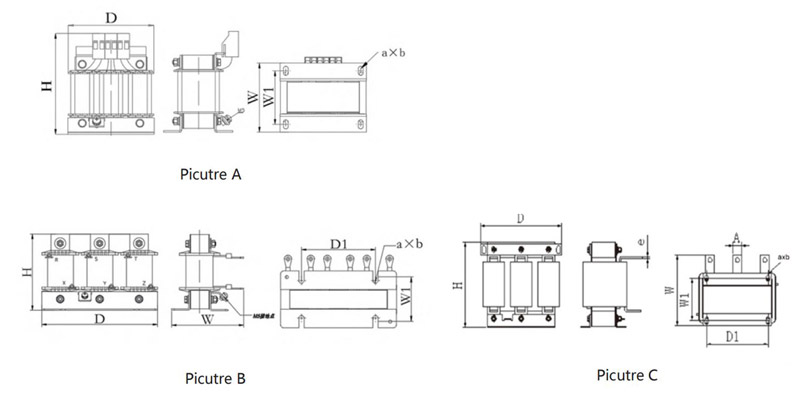

Outline  & Mounting Dimension(Unit:mm)



380V input AC reactor selection model



Reactor Type  No  Power (kW) Rated Current Inductance (mH) Voltage Drop Insulation Class   Weight (Kg) Dimension(±0.5mm)
Material  D*H*W(mm) D1*W1(mm) a*b(mm)
ACL-0005-EISC-E2M8C A 1.5 5A 2.8mH 2% F Cu 2.5 110*130*84 91*65 6*11
ACL-0007-EISC-E2M0C 2.2 7A 2mH 2% F Cu 2.5 110*130*84 91*65 6*11
ACL-0010-EISC-E1M4C 3.7 10A 1.4mH 2% F Cu 2.6 110*130*84 91*65 6*11
ACL-0015-EISC-EM93C 5.5 15A 0.93mH 2% F Cu 3.3 125*135*84 40*64 6*9
ACL-0020-EISC-EM70C 7.5 20A 0.7mH 2% F Cu 3.3 130*135*84 40*64 6*9
ACL-0030-EISCL-EM47C B 11 30A 0.47mH 2% F Cu 4.9 200*125*115 120*72 8.5*20
ACL-0040-EISCL-EM35C 15 40A 0.35mH 2% F Cu 4.9 200*125*115 120*72 8.5*20
ACL-0050-EISCL-EM28C 18.5 50A 0.28mH 2% F Cu 5.9 200*160*120 120*72 8.5*20
ACL-0060-EISCL-EM24C 22 60A 0.24mH 2% F Cu 5.9 200*160*120 120*72 8.5*20
ACL-0090-EISCL-EM16 30 90A 0.16mH 2% F Cu 6.9 200*160*120 120*72 8.5*20
ACL-0090-EISCL-EM16 37 90A 0.16mH 2% F Cu 6.9 200*160*120 120*72 8.5*20
ACL-0120-EISCL-EM12C 45 120A 0.12mH 2% F Cu 10 200*140*155 120*72 8.5*20
ACL-0150-EISH-E95UC C 55 150A 0.095mH 2% F AL 14 195*210*160 120*92 8.5*20
ACL-0200-EISH-E70UC 75 200A 0.07mH 2% F AL 16 195*220*170 120*102 8.5*20
ACL-0250-EISH-E56UC 110 250A 0.056mH 2% F AL 18 250*230*170 182*96 11*18
ACL-0290-EISH-E48UC 132 290A 0.048mH 2% F AL 21 250*230*180 182*96 11*18
ACL-0330-EISH-E42UC 160 330A 0.042mH 2% F AL 22 250*230*180 182*106 11*18
ACL-0390-EISH-E36UC 185 390A 0.036mH 2% F AL 25 290*250*185 214*100 11*18
ACL-0490-EISH-E28UC 220 490A 0.028mH 2% F AL 33 300*280*205 214*110 11*18
ACL-0530-EISH-E26UC 250 530A 0.026mH 2% F AL 42 300*280*205 214*110 11*18
ACL-0600-EISH-E23UC 280 600A 0.023mH 2% F AL 42 300*280*230 214*130 11*18
ACL-0660-EISH-E21UC 300 660A 0.021mH 2% F AL 45 300*280*230 214*130 11*18
ACL-0800-EISH-E17UC 380 800A 0.017mH 2% F AL 55 330*350*235 243*132 12*20
ACL-1000-EISH-E14UC 450 1000A 0.014mH 2% F AL 56 330*385*250 243*132 12*20
ACL-1250-EISH-E11UC 550 1200A 0.011mH 2% F AL 76 330*425*275 243*157 12*20

Note: Parameters are for reference only. If you have any questions, contact our sales department please. Information about the parameters is subject to change without notice.

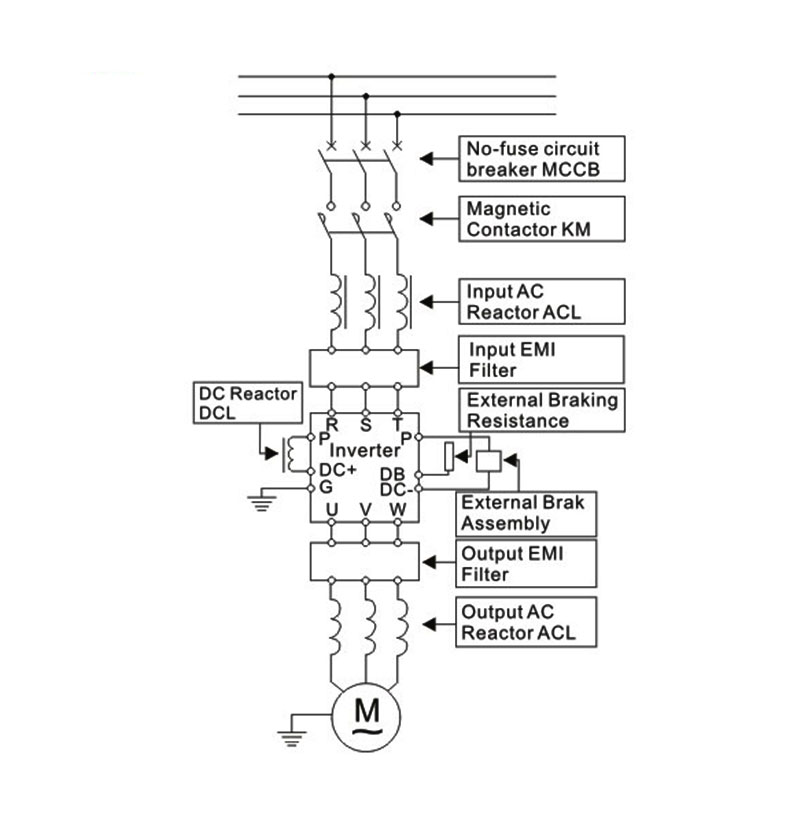

Wiring Diagram for Inverter System
