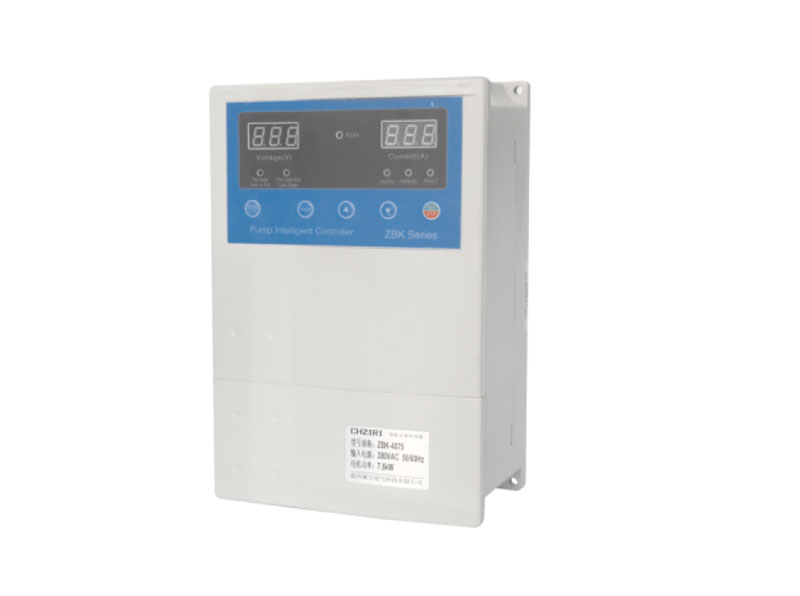

ZBK Intelligence Pump Controller adopt the digital control chip, set upper and down liquid level and automatic control in one function. Automatic and manual two working mode can be selected..the controller have loss phase, overload, empty load, over voltage and under voltage function protection. Small size .elegant appearance. Applicable to a variety of water supply control occasions.
Product Characteristics
◆ Rated working voltage: single-phase AC220V / 50 ~ 60Hz; three-phase AC3800V / 50 ~ 60Hz
◆ The matched motor power: 0.37 ~ 15kW
◆ set upper and down liquid level and automatic control in one function
◆ Automatic and manual two working mode can be selected .
◆Have loss phase, overload, empty load, over voltage and under voltage function protection
◆The restart time 1-999 minutes can be adjusted while without load.
◆ fault memory function
◆ rust protection, can effectively prevent the motor rust
◆ AC digital signal detection, The probe is durable.
◆ Easy installation, simple debug.

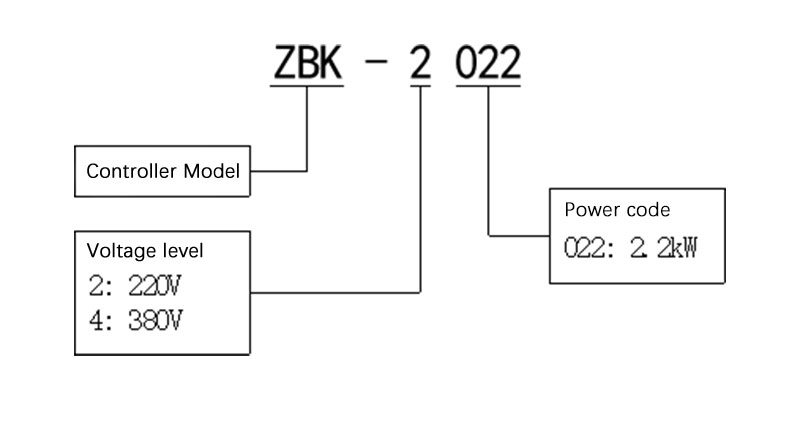

Demonstration of the model

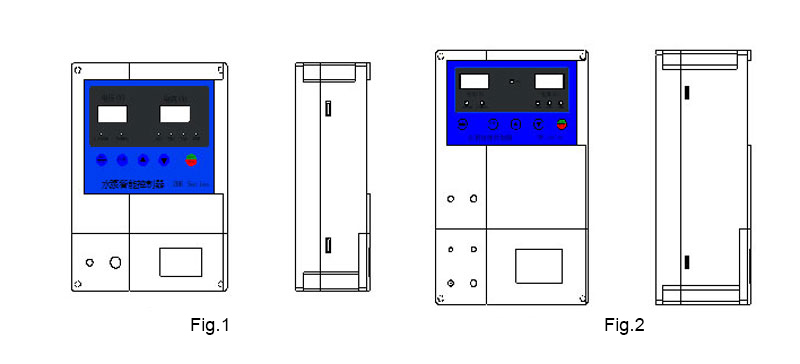

Outline& Mounting Dimension (Unit:mm)
Model Selection
Model |
Applicable power(kW) |
Voltage(V) |
Dimension(Unit: mm) |
Figure |
|||||
H |
H1 |
W |
W1 |
D |
d |
||||
ZBK-2022 |
0.37-2.2 kW |
220V |
200 |
188 |
150 |
138 |
73 |
Ф5 |
Fig.1 |
ZBK-4055 |
0.75-5.5 kW |
380V |
300 |
286 |
200 |
186 |
125 |
Ф6.5 |
Fig.2 |
ZBK-4075 |
7.5 kW |
380V |
|||||||
ZBK-4110 |
11 kW |
380V |
|||||||
ZBK-4150 |
15 kW |
380V |

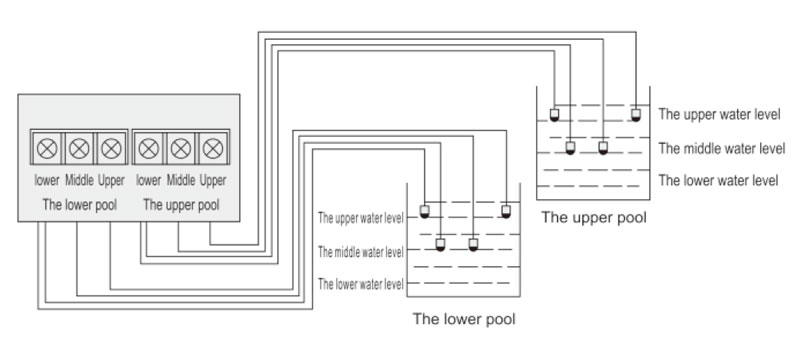

A. The upper and lower pool water supply connection

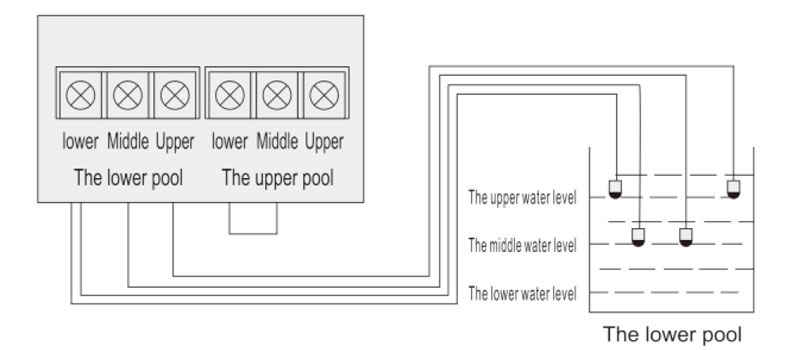

B. The lower pool water

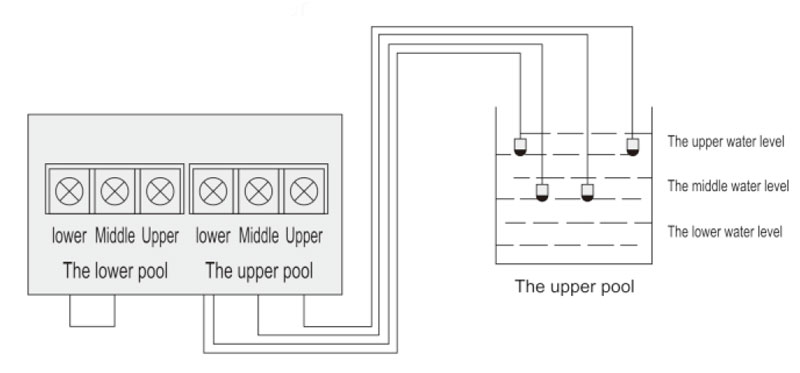

C. The upper pool water

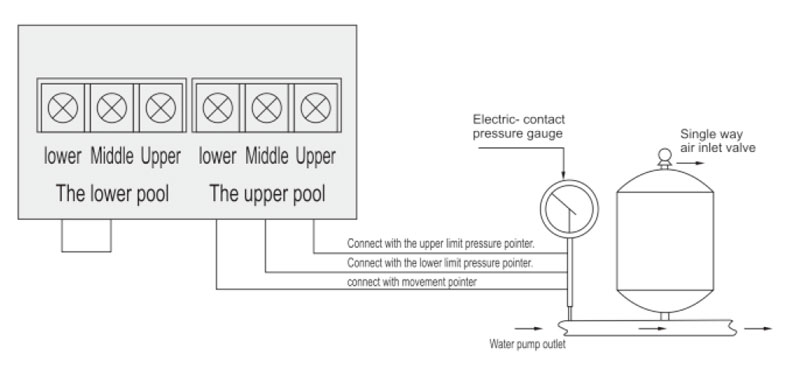

D. Constant pressure connection
