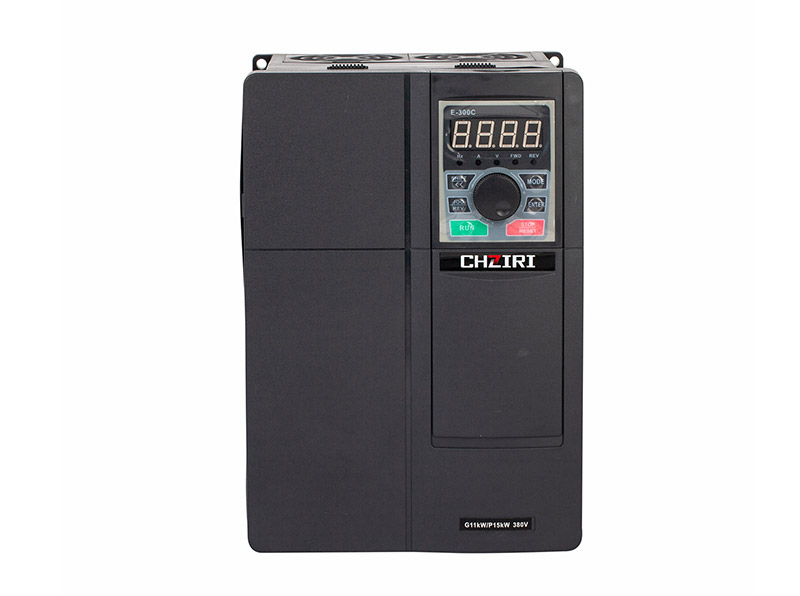

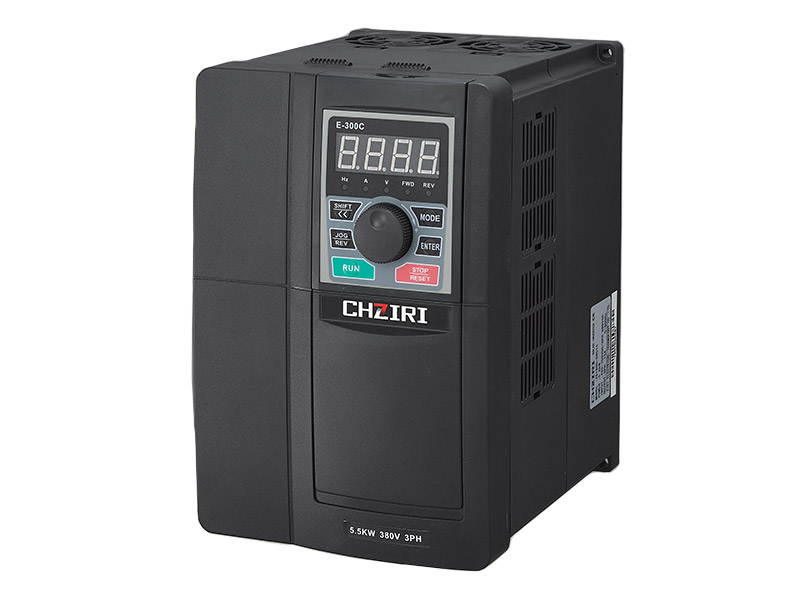

ZSI800 Solar Pumping Inverter

The product ZSI800 Solar Inverter Series applies to transforming three phase 380V or Single phase 220V submersible deep well pump into solar water pump system. It works this way that direct current produced by solar module inputs into alternating current which drives all kinds of water pump ,especially for submersible well pump .

Main features of this products are high quality, multifunctional, low noise, wide universality .etc.

1.Adopt advanced MPPT technology , fully make use of the power efficiency from solar module array .

2.With the changing of the sunshine ,it can automatically adjust motor speed and water flow out of pump .

3.It controls automatically when water level is high in pool. it stops work automatically ,however ,when water level is low .it activates automatically .

4.With the function of automatic protection .it can avoid pump form dry running while no water source .

5.Hibernate automatically under weak light such as sunset , quit hibernating under strong light such as sunrise .

6.To improve the liability of the working system with various protection .

7.Professionally designed for users of deep well pumps -friendly control and convenient use .





Product Description



For the working principle of solar photovoltaic panels and power supply features, this product has the following characteristics:

● MPPT is the abbreviation of Maximum Powqer Point Tracking (maximum power point tracking).The MPPT controller detects the voltage generated by a solar panel in real time and tracks the highest voltage and current (VI), allowing the system to charge the battery with maximum efficiency. Solar inverters play an important role in the PV system, coordinating the work of solar panels, batteries and loads. They are an indispensable component of the PV system.

● Software unique MPPT algorithm through the controller can detect real-time solar panel voltage regulation output frequency, fast dynamic response, and  the motor is always working at the maximum power point, so that the  solar photovoltaic panels to achieve the maximum economic efficiency.

● Software increases the keyboard encoder resolution setting function, a variety of resolutions can be selected . It's convenient for the user to operate and use .

● The main power of frequency inverter can either use for solar PV DC power . can be single phase , three phase ac power , simple wiring , It truly multi-power working  mode. expanding the practical application of the inverter; wide voltage design, the inverter In the higher and lower voltage can  still stable work, product is strong adaptability.





Demonstration of the Model



ZSI800 Solar Pumping Inverter Outline& Mounting Dimension ( Unit:mm)

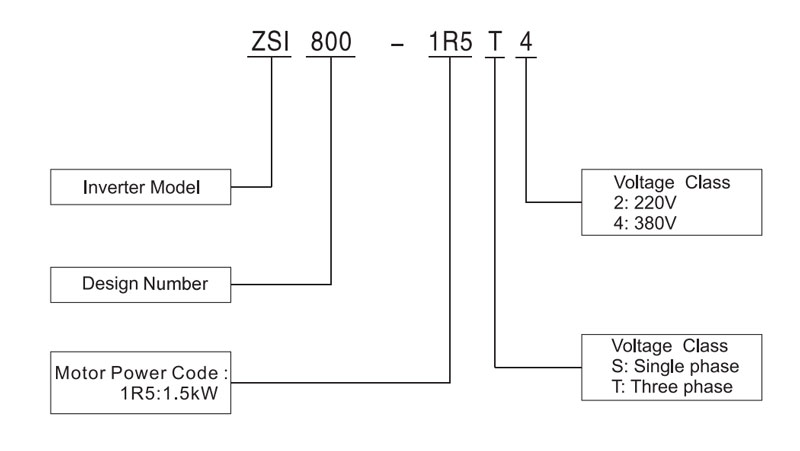

Inverter Model

Input Voltage(v)

Power (KW)

Current (A)

Dimension (mm)

Figure

H

H1

W

W1

D

d

ZSI800-0R4S2

260-380VDC

(Single Phase

220V±15%)

0.4

2.4

185

175

118

108

170

5

Fig.1

ZSI800-0R7S2

0.75

4.5

185

175

118

108

170

5

ZSI800-1R5S2

1.5

7.0

185

175

118

108

190

5

ZSI800-2R2S2

2.2

10.0

185

175

118

108

190

5

ZSI800-0R7T4

420-750VDC

(Three Phase

400V±15%)

0.75

2.5

185

175

118

108

170

5

Fig.1

ZSI800-1R5T4

1.5

3.7

185

175

118

108

170

5

ZSI800-2R2T4

2.2

5.0

185

175

118

108

170

5

ZSI800-3R7T4

3.7

9.0

185

175

118

108

190

5

ZSI800-5R5T4

5.5

13

215

205

145

135

193

5

ZSI800-7R5T4

7.5

17

215

205

145

135

193

5

ZSI800-011T4

11

25

265

253

185

174

215

6

ZSI800-015T4

15

32

265

253

185

174

215

6

ZSI800-018T4

18.5

37

385

370

220

150

210

7

Fig.2

ZSI800-022T4

22

45

385

370

220

150

210

7

ZSI800-030T4

30

60

450

435

260

180

225

7

ZSI800-037T4

37

75

450

435

260

180

225

7

ZSI800-045T4

45

90

510

490

320

220

275

9

ZSI800-055T4

55

110

510

490

320

220

275

9

ZSI800-075T4

75

160

570

550

380

260

320

9

ZSI800-090T4

90

176

570

550

380

260

320

9

ZSI800-110T4

110

210

570

550

380

260

320

9

ZSI800-132T4

132

253

570

550

380

260

320

9

ZSI800-160T4

160

300

800

775

460

350

330

11

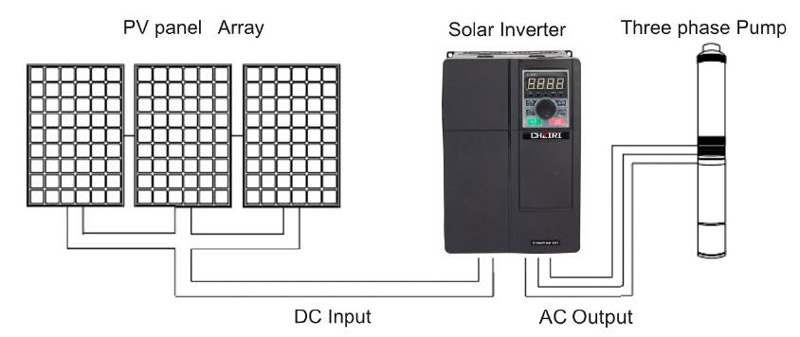

ZSI800 Solar Pumping Inverter System



1.Solar pumping system can provide water for remote areas lacking of electricity or places where the electricity supply is unstable.

2. Solar pump Inverter can convert the DC power from solar panels to AC power so to drive various kinds of pumps.

3.Solar pumping Inverter System enables continuously pumping when in good weather. System is not equipped with storage battery devices, it is suggested that pumping the water to conservation pool for future use. Water source could come from river, lake, well, or other natural water source or special source.

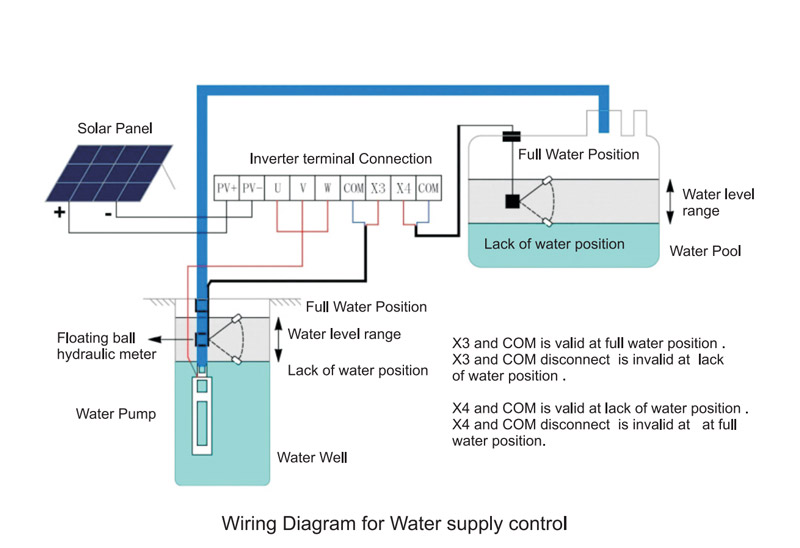

4.System enables application of floating switch in the conservation pool or water





Solar pumping systems can be applied to daily use (ground water),agricultural irrigation, forestry irrigation, desert control, pasture animal husbandry, water supply for islands, waste water treatment engineering, and so on.

Solar pumping system is dispensed with energy storing devices, and stores water instead of electricity. It improves the reliability of the device, and at the same time it lowers the construction and maintenance costs of the system dramatically.

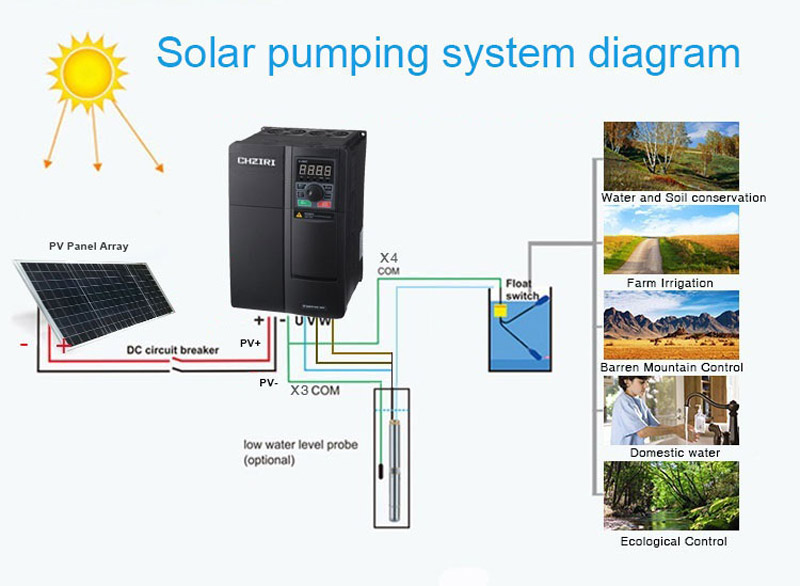

Solar Pumping System Diagram
